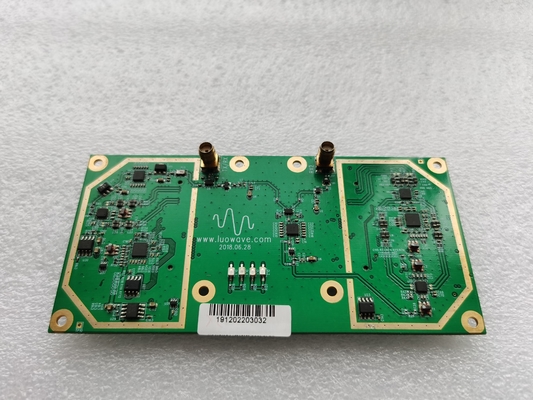

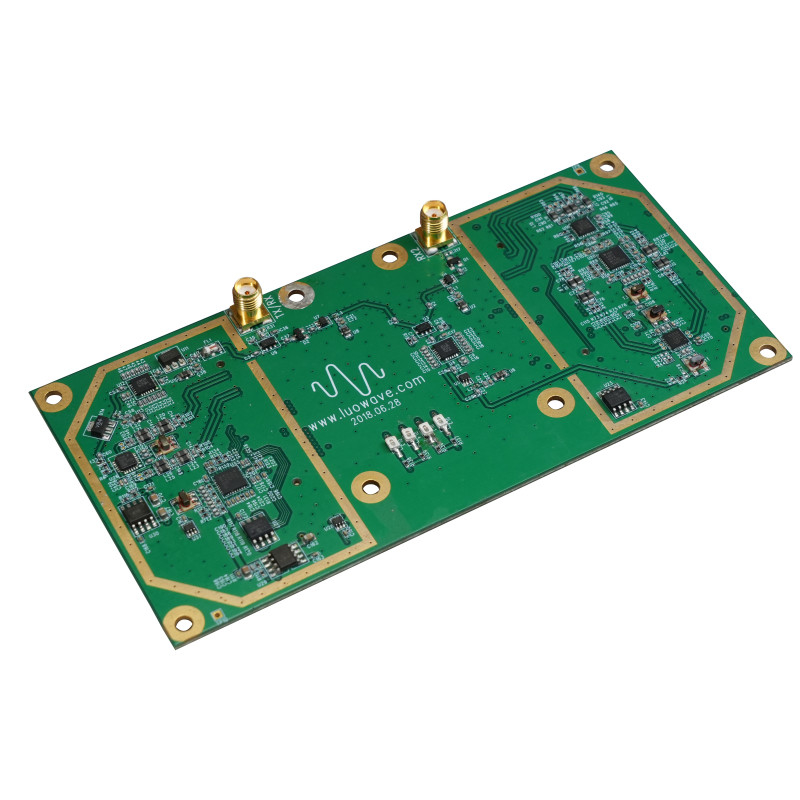

GNSS And Cellular USRP Daughterboard SBX 120MHZ Luowave

GNSS And Cellular USRP Daughterboard SBX 120MHZ Luowave
GNSS And Cellular USRP Daughterboard SBX 120MHZ Luowave

Large Image :  GNSS And Cellular USRP Daughterboard SBX 120MHZ Luowave

Product Details:
Place of Origin: China
Brand Name: Luowave
Model Number: SBX-LW(40MHZ,120MHZ)
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD
Packaging Details: Paper Box\Paper Carton
Delivery Time: Spot Goods or 30 Days
Payment Terms: T/T
Supply Ability: 1 Piece

GNSS And Cellular USRP Daughterboard SBX 120MHZ Luowave

Description
Frequency Coverage: 400-4400 MHz Bandwidth: 120 MHz
High Light:

GNSS Daughterboards SBX

,

cellular Daughterboards SBX

,

120MHZ Daughterboards SBX cellular

USRP Daughterboards SBX-LW 120MHZ,X Series only

The SBX-120 is a full-duplex, wideband transceiver that covers a frequency band from 400 MHz to 4.4 GHz with a instantaneous bandwidth of 120 MHz. The SBX-120 can serve a wide variety of application areas, including public safety, GNSS, cellular and more. The SBX-120 is compatible with the USRP X310.



Main Features:

1. Frequency coverage:400-4400 MHz Rx/Tx

2. Maximum signal bandwidth includes: 120 MHz

3. It delivers 100 mW of output power and 5dB of noise figure. The local oscillator can be used for receiving and transmitting channels, and can also be used for dual-band operation.

4. MIMO-enabled, ideal for applications that need to operate in multiple frequency bands in the 400 to 4400 MHz frequency range

5. Typical applications include WIFI, WIMAX, S-band transceivers and 2.4GHz ISM band transceivers

Functional description:

The SBX-LW-120 is a high-bandwidth transceiver that provides up to 100mW of power output with a noise figure of 5 dB. The local oscillator's receive and transmit chains operate independently, allowing dual-band operation. The SBX-LW provides MIMO functionality. For those who want to access a wide range of applications from 400 MHz to 4400 MHz, the SBX-LW is the ideal SDR device. Applications include WiFi, WiMAX, S-band transceivers and 2.4 GHz ISM band transceivers.

Compatible product:

GNSS And Cellular USRP Daughterboard SBX 120MHZ Luowave 0
