Luowave X440 PRO 8-Channel SDR 30MHz-4GHz 1.6GHz Bandwidth USRP

Luowave X440 PRO 8-Channel SDR 30MHz-4GHz 1.6GHz Bandwidth USRP

Luowave X440 PRO 8-Channel SDR 30MHz-4GHz 1.6GHz Bandwidth USRP

Brand Name:	Luowave
Model Number:	Luowave X440 PRO
MOQ:	1
Price:	$26,000.00

Detail Information

Product Description

Detail Information

Place of Origin:

China

Channel:

8 TX/RX Channel

Frequency Range:

30 MHz – 4 GHz Frequency Range

Bandwidth:

Bandwidth Up To 1.6 GHz/channel

Phase Synchronization:

Phase Stability (within Device): < 1° ，RMS Phase Stability (device-to-device): < 2° RMS

FPGA:

Xilinx Zynq UltraScale+ ZU48DR RFSoC

Connector:

Dual 100 GEth Via QSFP28

Function:

Open Source (GNU Radio, RFNoC, UHD)

Highlight:

8 Channel RF SDR

,

Xilinx RFSoC RF SDR

Product Description

Luowave X440 PRO 30 MHz – 4 GHz RF SDR

8 Channel Xilinx RFSoC XCZU48DR FPGA Phase-Coherent < 1° RMS USRP Software Defined Radio Device

The Luowave X440 PRO is an advanced Software Defined Radio (SDR) platform from Wuhan Luoguang Electronics featuring:

Xilinx XCZU48DR FPGA chip with enhanced processing power
8 transmit and 8 receive channels covering 30MHz to 4GHz frequency range
1.6GHz maximum bandwidth in single/dual-channel mode
400MHz per channel in 8-channel operation
14-bit ADC/DAC converters with 5 GSps sampling rates
Exceptional phase coherence: <1° RMS within unit, <2° RMS between units

This high-performance system is ideal for developing and testing 5G/6G massive MIMO systems, advanced beamforming, precision direction finding, phased array radars, and electronic warfare applications, providing complete support from research validation to actual deployment.

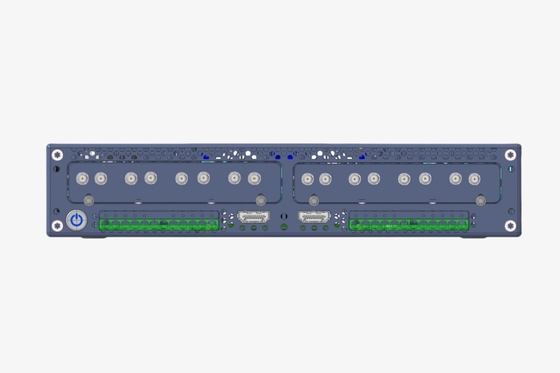

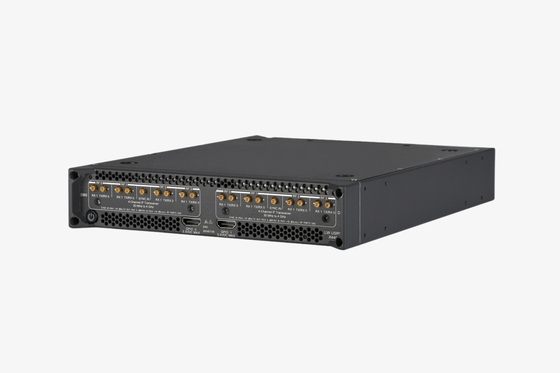

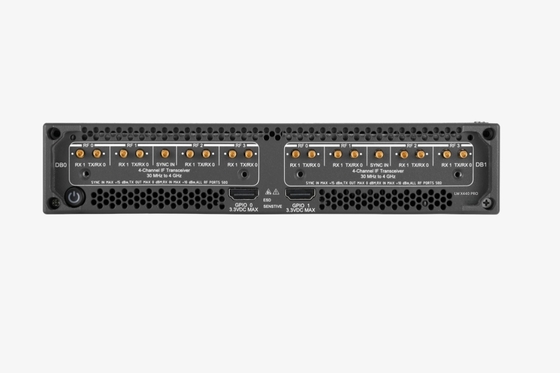

Luowave X440 PRO 8-Channel SDR 30MHz-4GHz 1.6GHz Bandwidth USRP 0

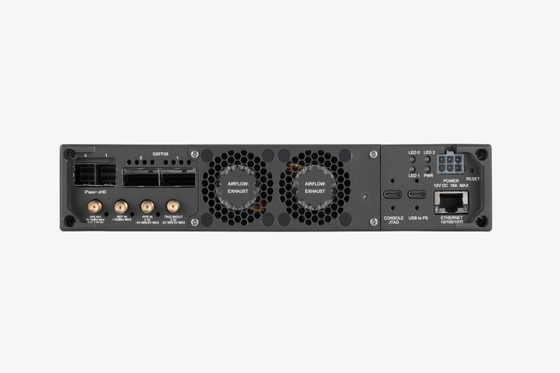

Luowave X440 PRO 8-Channel SDR 30MHz-4GHz 1.6GHz Bandwidth USRP 1
