Luowave X310 USRP X Series Scalable Software Defined Radio High Speed Connectivity

Luowave X310 USRP X Series Scalable Software Defined Radio High Speed Connectivity
Luowave X310 USRP X Series Scalable Software Defined Radio High Speed Connectivity

Large Image :  Luowave X310 USRP X Series Scalable Software Defined Radio High Speed Connectivity

Product Details:
Place of Origin: China
Brand Name: Luowave
Model Number: X310
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD
Packaging Details: Paper Box\Paper Carton
Delivery Time: Spot Goods or 30 Days
Payment Terms: T/T
Supply Ability: 1 Piece

Luowave X310 USRP X Series Scalable Software Defined Radio High Speed Connectivity

Description
High Light:

USRP X Series X310

,

USRP usb sdr High Speed

,

high speed USRP usb sdr

Software Defined Radio USRP-LW X310

Product Overview

USRP-LW X310 is a high-performance, scalable software defined radio (SDR) platform for designing and deploying next generation wireless communications systems. The hardware architecture combines two extended-bandwidth daughterboard slots covering DC – 6 GHz with up to 120 MHz of baseband bandwidth, multiple high-speed interface options (PCIe, dual 10 GigE, dual 1 GigE), and a large user-programmable Kintex-7 FPGA in a convenient desktop or rack-mountable half-wide 1U form factor. In addition to providing best-in-class hardware performance, the open source software architecture of X310 provides cross-platform UHD driver support making it compatible with a large number of supported development frameworks, reference architectures, and open source projects.

Operating Systems

Linux

Windows

Development Frameworks

GNU Radio

Xilinx Vivado 2015.2 Design Suite





High-Performance User-Programmable FPGA

At the heart of the USRP X310, the XC7K410T FPGA provides high-speed connectivity between all major components within the device including radio frontends, host interfaces, and DDR3 memory. The default FPGA core provided with UHD provides all of the functional blocks for digital down-conversion and up-conversion, fine-frequency tuning, and other DSP functions allowing it to be interchangeable with other USRP devices using the UHD architecture. The large Kintex-7 FPGA provides additional space for developers to incorporate custom DSP blocks and is compatible with a large number of USRP supported development frameworks, reference architectures, and open source projects.



  USRP N210 USRP X300 USRP X310
FPGA Spartan3 XC3SD3400A Kintex 7-325T Kintex 7 -410T
Logic Cells 53k 328k 406k
Memory 2,268 Kb 16,020 Kb 28,620 Kb
Multipliers 126 840 1540
Clock Rate 100 MHz 200 MHz 200 MHz
Streaming Bandwidth per Channel (16-bit) 25 MS/s 200 MS/s 200 MS/s

Main Features

1. At the heart of the USRP-LW X310, the XC7K410T FPGA provides high-speed connectivity between all major components within the device including radio frontends, host interfaces, and DDR3 memory.

2. The default FPGA core provided with UHD provides all of the functional blocks for digital down-conversion and up-conversion, fine-frequency tuning, and other DSP functions allowing it to be interchangeable with other USRP devices using the UHD architecture.

3. The large Kintex-7 FPGA provides additional space for developers to incorporate custom DSP blocks and is compatible with a large number of USRP supported development frameworks, reference architectures, and open source projects.

Schematic diagram

Luowave X310 USRP X Series Scalable Software Defined Radio High Speed Connectivity 0

Detailed performance:

Technical Parameters:

Luowave X310 USRP X Series Scalable Software Defined Radio High Speed Connectivity 1

Product Summary:

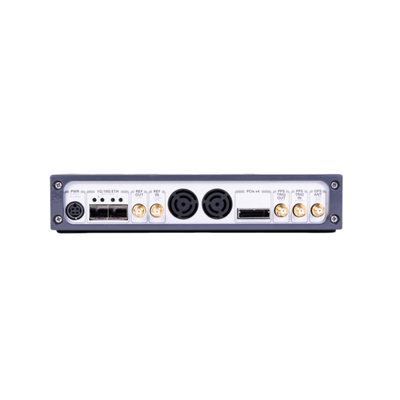

The USRP-LW X310 offers a variety of high speed interfaces to choose from. On the panel of the box, the Gigabit Ethernet port is the easiest way to connect. For applications with extended bandwidth and low latency, such as PHY/MAC research, the LW X310 provides an efficient bus interface PCIe x4 for this deterministic operation. When the application uses network records or multi-node processing, 10G ports are the best choice. The USRP-LW X310 includes many additional features that will help with some other wireless applications. For example, in FPGA design, 1GB DDR3 on the motherboard can be used as data buffering and data storage. The optional internal GPSDO provides a highly accurate frequency reference when synchronized to a GPS system with a synchronization delay of less than 50ns. Allows the user to control external components such as amplifiers and switches through the GPIO interface, supports inputs such as event triggers, and observes debug signals. The USRP-LW X310 also includes an internal JTAG adapter that allows developers to easily load and debug new FPGA images.

System development environment:

Luowave X310 USRP X Series Scalable Software Defined Radio High Speed Connectivity 2

Performance comparison between Networked series and X series FPGA:

Luowave X310 USRP X Series Scalable Software Defined Radio High Speed Connectivity 2

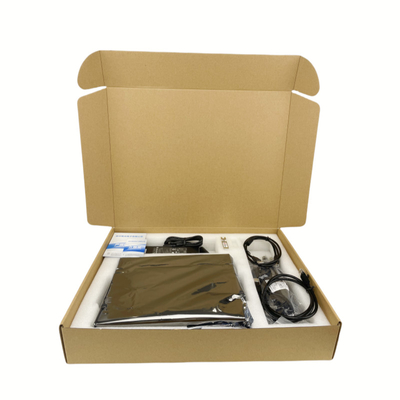

Included in This Equipment:

1. USRP-LW X310

2. Gigabit network port

3. SFP+Gigabit adapter

4. Power Supply

5. USB2.0JTAG cable

6. Four SMA-Bulkhead Cables

Test of USRP-LW X310

The test report of X310 and 3 daughterboards(WBX, SBX, UBX)can be viewed in the details of daughterboards
