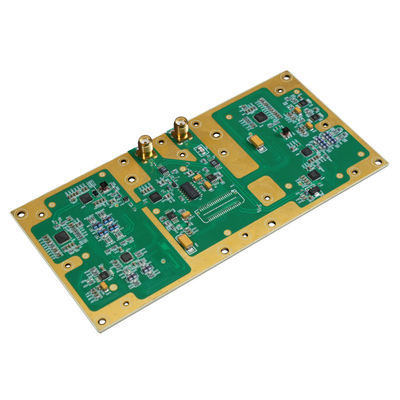

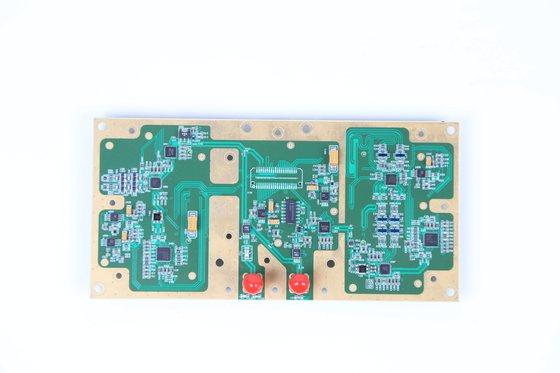

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM

Description
High Light:

WBX RF Daughter Card

,

2.4GHz ISM Daughterboard

,

Daughterboard 2.4GHz ISM

USRP Daughterboards WBX-LW 120MHZ,X Series only

The WBX-120 is a full-duplex, wideband transceiver that covers a frequency band from 50 MHz to 2.2 GHz with an instantaneous bandwidth of 120 MHz. The WBX-120 can serve a wide variety of application areas including public safety, airband communications, amateur radio, and ISM. The WBX-120 is compatible with the USRP X310.



Main Features:

1. Frequency coverage: 50 MHz - 2.2 GHz

2. Maximum bandwidth includes: 120 MHz

3. The WBX RF daughter board contains a full-duplex wideband transceiver that supports up to 120 MHz of instantaneous bandwidth

4. Serving a wide range of applications: public safety, communications, amateur radio and ISM

5. The local oscillator's receive and transmit chains operate independently, allowing for frequency duplex operation

6. The reference for the local oscillator is the master clock from the USRP, allowing multiple coherent operations

Functional description:

The WBX-LW-40 provides a high-bandwidth transceiver that delivers up to 100mW of power output with a noise figure of 5 dB. The local oscillator's receive and transmit chains operate independently and can be synchronized for MIMO. It is an ideal SDR device for applications that want to access frequencies in the 50MHz-2200 MHz range. Applications include WiFi, WiMAX, S-band transceivers and 2.4 GHz ISM band transceivers. Applications include land mobile communications, marine and aerospace radios; mobile base stations, PCs and GSM multi-band radios; coherent multi-base radars; wireless sensor networks; broadcast television; and public safety management. Applicable to USRP-LW N200, USRP-LW N210, USRP-X310, USRP-X300.

Compatible product:

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 0

Please do not hesitate to contact me if you need any further information.

Whatsapp/skype/Wechat: +8618062514745 Web:https://www.luowave.com/en/

Test of WBX-LW 40M

Test environment description: R&S company equipment is used for testing, the model is ZVL. The test equipments areUSRP-LW X310 and WBX-LW 40M. The two devices are connected by radio frequency cable directly. Test environment diagram:

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 1

Open-loop transmitter test connection diagram:

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 2

Closed-loop Spontaneous Receiving Test Connection Diagram:

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 3

Open-loop and closed-loop test data based on GNU RADIO COMPANION: GNU RADIO COMPANION test block diagram:

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 4

1. Carrier suppression and Image Reject Test: Central frequency 70MHz, baseband signal frequency 10kHz, GAIN 9dB

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 5

Central frequency 70MHz, Maximum gain output graphics:

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 6

Central frequency 70MHz, closed-loop transceiver test spectrum and time-domain graphics

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 7Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 8

2. Open-loop and closed-loop test data based on GNU RADIO COMPANION: Carrier suppression and Image Reject Test: Central frequency 100MHz, baseband signal frequency 10kHz, GAIN 9dB

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 9

Central frequency 100MHz, Graphics output at maximum gain:

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 10

Central Frequency 100MHz, Closed Loop Transceiver Test Spectrum and Time Domain Graphics

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 11Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 12

3. Open-loop and closed-loop test data based on GNU RADIO COMPANION: Carrier suppression and Image Reject Test: Central frequency 400 MHz, baseband signal frequency 10 kHz, GAIN 9dB

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 13

Central frequency 400 MHz, Graphics output at maximum gain:

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 14

Central frequency 400 MHz, closed-loop transceiver test spectrum and time-domain graphics

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 15Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 16

4. Open-loop and closed-loop test data based on GNU RADIO COMPANION: Carrier suppression and Image Reject Test: Central frequency 800MHz, baseband signal frequency 10kHz, GAIN 9dB

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 17

Central frequency 800MHz, Output Graphics at Maximum Gain:

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 18

Central Frequency 800MHz, Closed-Loop Transceiver Test Spectrum and Time-Domain Graphics

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 19Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 20

5. Open-loop and closed-loop test data based on GNU RADIO COMPANION: Carrier suppression and Image Reject Test: Central frequency 1 GHz, baseband signal frequency 10 kHz, GAIN 9dB

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 21

Central frequency 1 GHz, Output Graphics at Maximum Gain:

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 22

Central Frequency 1GHz, Closed-loop Transceiver-Receiver Test Spectrum and Time-Domain Graphics

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 23Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 24

6. Phase noise measurement: central frequency 1 GHz:

Luowave RF USRP Daughterboards WBX 120MHZ For Amateur Radio And ISM 25
