TwinRX-LW | Luowave RF Daughter Card Dual Channel Superheterodyne Receiver USRP TwinRX

Name: TwinRX-LW | Luowave RF Daughter Card Dual Channel Superheterodyne Receiver USRP TwinRX
Brand: Wuhan Tabebuia Technology Co., Ltd.
SKU: TwinRX-LW
Price: 240.00 USD
Availability: InStock

Brand Name:	Luowave
Model Number:	TwinRX-LW
Price:	$5,475.00

Detail Information

Product Description

Detail Information

Place of Origin:

China

Highlight:

RF Daughter Card Dual Channel

RF Daughter Card TwinRX

twinrx daughterboard Dual channel

Product Description

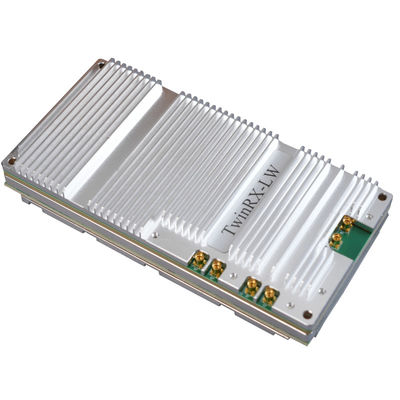

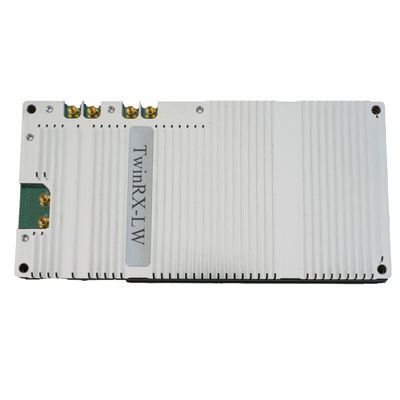

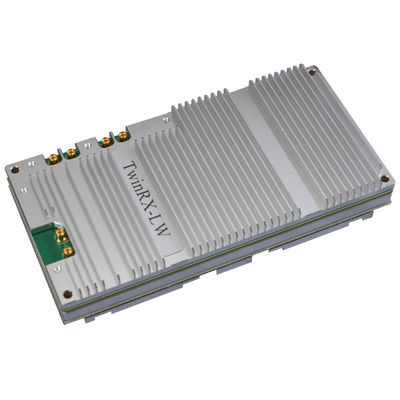

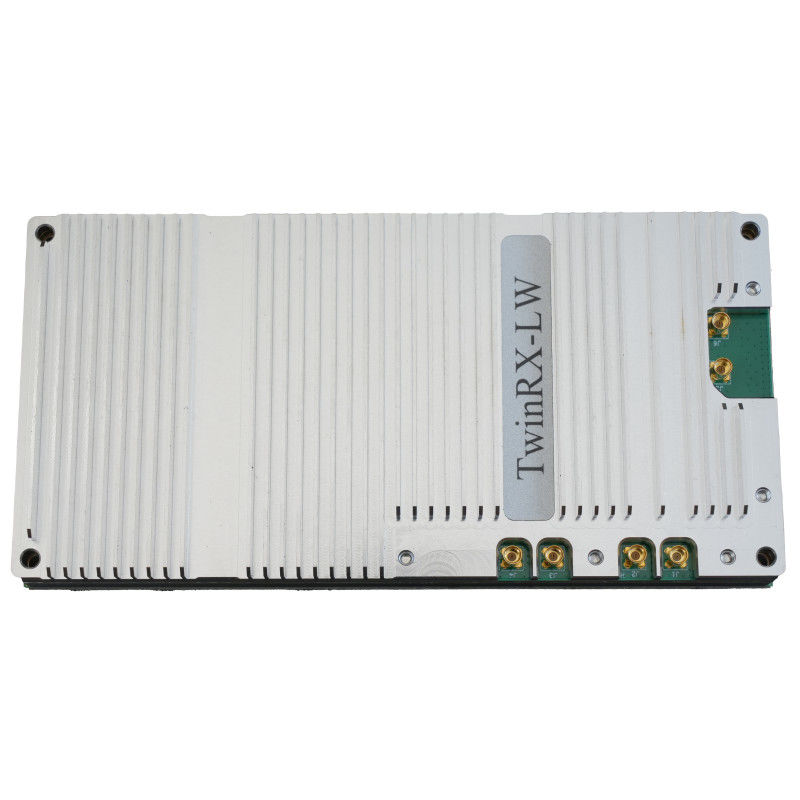

LUOWAVE RF Rx/Tx Daughterboards TwinRX-LW

The TwinRX daughterboard is a dual channel superheterodyne receiver that offers wide dynamic range and accurate phase synchronization for spectrum monitoring and direction finding applications. The RF signal chain features preampilifiers, preselectors, attenuators, and two mixer stages for excellent selectivity and spurious performance. The receiver is tunable from 10 MHz – 6 GHz and has 80 MHz of instantaneous bandwidth per channel, providing the versatility necessary to analyze a variety of signals in multiple bands of interest. Users can tune the two channels independently to simultaneously monitor uplink and downlink communication with a combined bandwidth of 160 MHz. The ability to share the LO between channels across multiple daughterboards enables the phase-aligned operation required to implement scalable multichannel phased arrays. The receiver is capable of fast frequency hopping to detect frequency agile emitters.

Main Features:

Frequency range: 10 MHz – 6 GHz
Bandwidth: 80 MHz per channel
Channels: Two-stage superheterodyne, 2 RX, Independent tuning
LO sharing
USRP compatibility: X Series
RF shielding
Coherent and phased aligned operation

Please do not hesitate to contact me if you need any further information.
