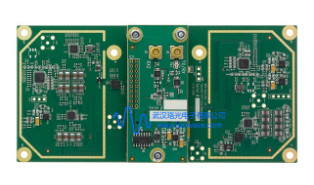

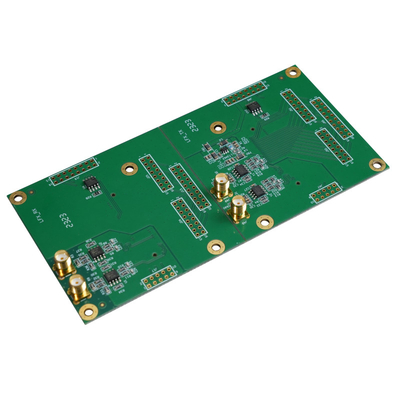

RF LFRX LFTX Daughterboards 0 To 30MHz For HF Communication

RF Daughterboards LFTX/ LFRX-LW

Product introduction:

The LFRX daughter board uses two high-speed operational amplifiers, and the operating frequency is 0-30MHz. Products are usually used to down-convert external RF front-end signals to their operating frequency range. With proper components, LFRX can also operate USRP in the HF band. The board has no adjustable components or programmable gains.

The LFTX daughter board uses two high-speed operational amplifiers with a working frequency of 0-30MHz. Products are usually used in the HF band, or use an external RF front end to achieve up-conversion or signal amplification. The board has no adjustable components or programmable gains.

Main feature:

Frequency coverage: 0-30MHz

Performance description:

The LFRX daughter board uses two high-speed operational amplifiers, and the operating frequency is 0-30MHz. Products are usually used to down-convert external RF front-end signals to their operating frequency range. With proper components, LFRX can also operate USRP in the HF band. After data conversion, each signal received by LFRX can be operated independently and as a complete I/Q signal. Typical applications include HF communication, measurement with external RF front-end and direct reception of signals below 30MHz.

The LFTX daughter board uses two high-speed operational amplifiers with a working frequency of 0-30MHz. Products are usually used in the HF band, or use an external RF front end to achieve up-conversion or signal amplification. LFTX can provide independent output or output complete I/Q signal. Typical applications include HF communication, cooperating with external RF front-ends and directly generating signals below 30MHz.

Compatible product
