USRP-LW N210 | Luowave 6V Ettus Research USRP SDR N210 Ethernet Modular Design

Name: USRP-LW N210 | Luowave 6V Ettus Research USRP SDR N210 Ethernet Modular Design
Brand: Wuhan Tabebuia Technology Co., Ltd.
SKU: N210
Price: 488.00 USD
Availability: InStock

Brand Name:	Luowave
Model Number:	N210
MOQ:	1 Piece
Price:	USD
Delivery Time:	Spot Goods or 30 Days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Keywords:

USRP Software Defined Radio

Feature:

Modular Design

DC Voltage Input:

6 Volte

Frequency:

DC To 6GHz

Packaging Details:

Paper Box\Paper Carton

Supply Ability:

1 Piece

Highlight:

6V ettus usrp n210

usrp n210 ettus 6V

USRP N210 6V Ettus

Product Description

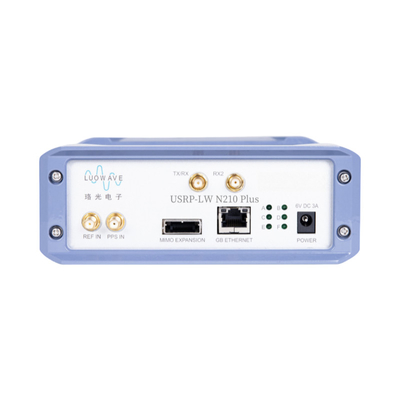

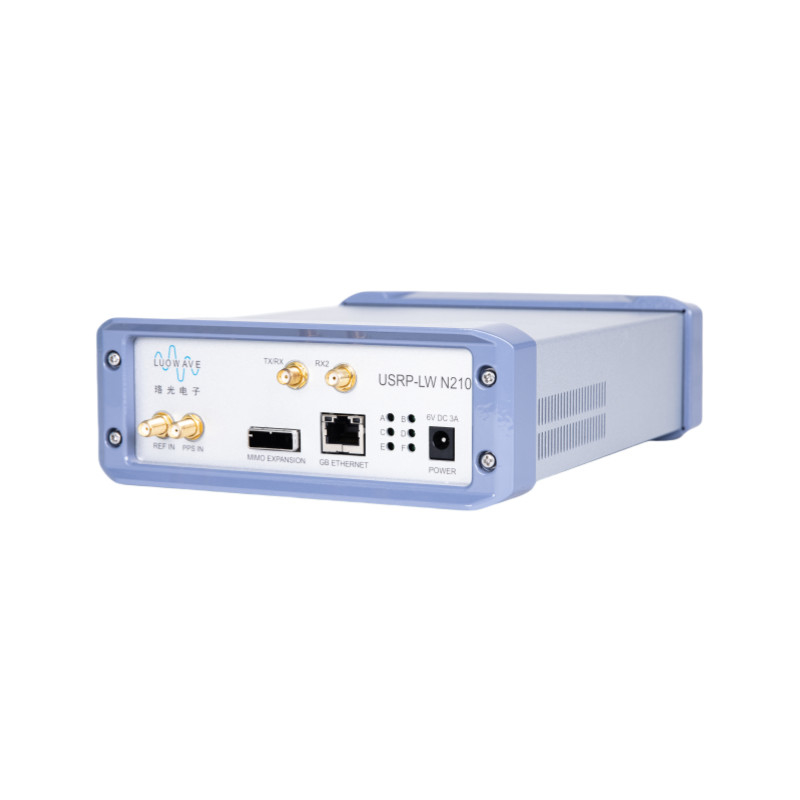

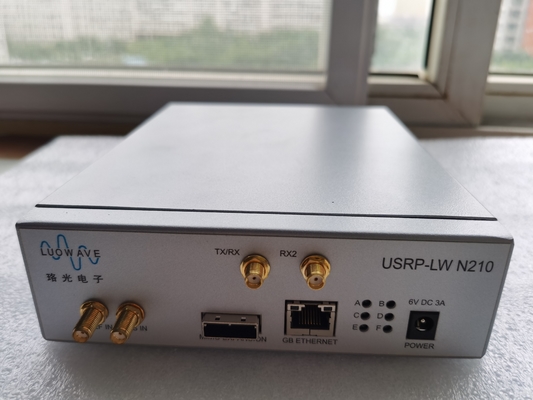

Ethernet Port Series USRP-LW N210

The USRP-LW N210 Series USRP Software Defined Radio features high bandwidth, high dynamic range processing capabilities. The USRP Software Defined Radio is designed for demanding communications applications. The overall architecture of the product includes Xilinx's Spartan3A-DSP3400 FPGA, 100MSPS dual-channel ADC, and 400MSPS dual-channel A DAC that transmits data to the main processor via Gigabit Ethernet.

The USRP-LW N210 features a modular design that operates over a frequency range from DC to 6GHz, while multiple USRP-LW N210 series can be synchronized and formed into a MIMO system through expansion ports on the device. The GPDSO Option Module provides GPS reference clocks with errors in the 0.01 ppm range for multiple USRP-LW N210 devices. The USRP-LW N210 transmits UP to 50MHz of RF bandwidth to the host. Users can implement custom functions within the FPGA architecture or in the 32-bit RISC soft core on the motherboard.

The USRP-LW N210 provides resource-rich FPGA firmware. The FPGA is capable of handling up to 100MHz rf signals upstream and downstream. The FPGA firmware can be updated via Gigabit Ethernet.

The USRP-LW N210 equipment kit includes: one USRP-LW N210 main unit, two SMA head cables, one Ethernet cable, and one power adapter.

USRP-LW N210 technical data:

Parameter category	numeric value	unit	Parameter category	numeric value	unit
Input/Output			RF performance parameters when paired with WBX-LW
DC voltage input	6	V	Single-sideband signal/image rejection	35/50	dBc
current	1.3	A	Phase noise (1.8GHz).
Current when installing the WBX daughter board	2.3	A	10kHz	-80	dBc/Hz
Convert module parameters			100 kHz	-100	dBc/Hz
ADC sampling rate	100	MS/s	1MHz	-137	dBc/Hz
ADC resolution	14	bits	Output power	15	dBm
ADC SFDR	88	dBc	Enter a third-order intercept point	0	dBm
DAC sampling rate	400	MS/s	Noise figure	5	dB
DAC resolution	16	bits	Physical properties
DAC SFDR	80	dBc	Operating temperature	0-55	C
With host maximum rate (8b/16b).	50/25	MS/s	size	225×165×50	mm
Local vibration accuracy	2.5	ppm	weight	1.0	kg
Lock GPSDO precision	0.01	ppm
