Millimeter waves have a wide range of applications in communications, radar, remote sensing, astronomy and other fields. At the same time that 5G construction is in full swing, with the freeze of the R16 version, people are gradually focusing on the key technologies in the next stage of 5G. Among them, including millimeter wave technology, which is known as the killer of 5G.
Compared to the strain on allocating resources in the Sub-6 band, mmWave can easily allocate bandwidth resources above 100MHz, even up to 400MHz or 800MHz. Based on such abundant frequency bandwidth resources, the wireless transmission speed of mmWave 5G can easily exceed Sub-6G by several times.

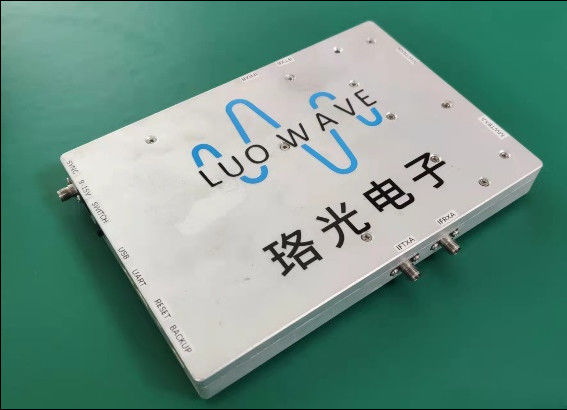

As a professional radio equipment manufacturing and application technology service provider, Luoguang Electronics has released a series of SDR products to meet the various needs of Sub-6G. The MWM39 is a newly developed module of Luo optoelectronics to meet the needs of the millimeter wave field and can cover 37-40GHz. This module can be used with or alone with USRP products.
Indicators and interfaces
| project | index | remark |
| RF operating frequency | 37-40GHz | |
| If the frequency of operation is medium frequency | 3.1-4.2GHz | |
| Duplex mode | TDD | |
| Number of inverter channels | 2 | |
| Transmit channel | ||
| If the maximum input power of the mid-frequency frequency | 5 dBm | |
| Transmission variable frequency insertion loss | 8 dB | Typical values |
| Gain dynamic range | 35 dB | |
| Emission spurious suppression | 50dB | |
| Receive channel | ||
| Receives maximum power | 3 dBm | |
| Receive variable frequency insertion loss | 10 dB | Typical values |
| Gain dynamic range | 20dB | |
| Receive mirror suppression | 35dB | |
| Phase noise |
-77dBc/Hz@1KHz -85dBc/Hz@10KHz -85dBc/Hz@100KHz -108dBc/Hz@1MHz |
39GHz |
| RF interface | 2.92mm-F | |
| If the intermediate frequency interface | SMA-F | |
| Control interface | UART | |
| voltage | 12V | 9~15V |
| power consumption | <15W | |
| size | 185*130*20mm | Connector not included |
The MWM39 can be controlled individually via a PC with a built-in high-performance frequency source.
Block diagram of the module
Software
The module communicates with the host computer using a serial port. The software used by the host computer is written by Python, which is simple to operate and easy to control the module. The host computer software supports Windows and Linux systems.
