LUOWAVE Clock source OctoClock-LW-G, Compatible with ETTUS OctoClock-LW-G

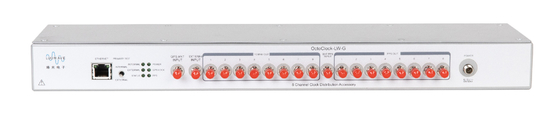

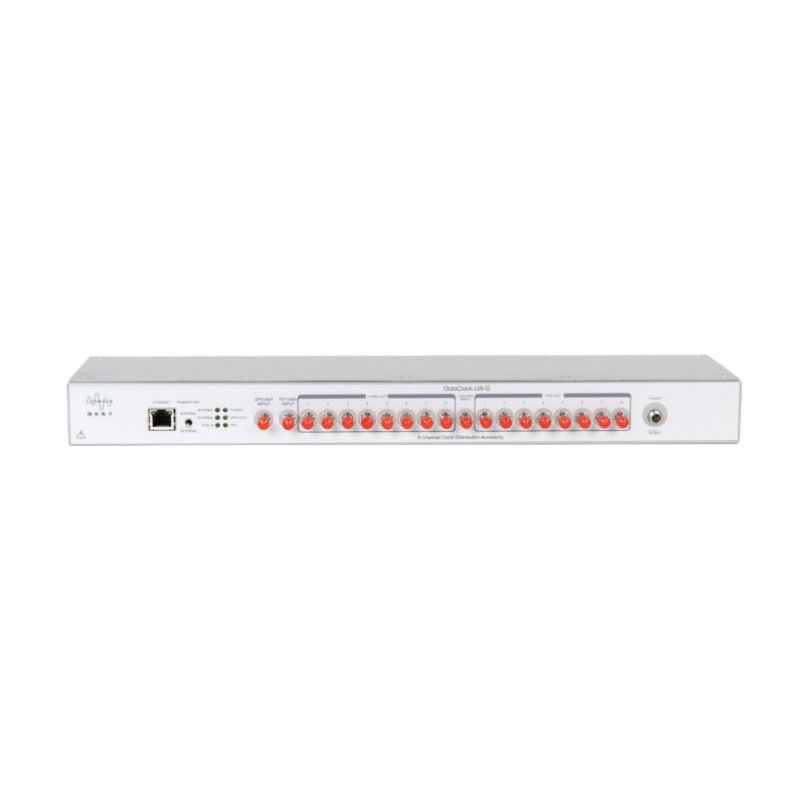

Clock source Octoclock-LW-G

Integrated 8 clock sources, including 8 10MHz and 8 1PPS

• It is  convenient to solve the multi-channel synchronization problem
• Provides the same frequency and in-phase signal for MIMO(multiple-in multipleout) applications
• Source detection of automatic switching in the event of a failure or disconnection
• Users can choose between the internal GPSDO and the external 10 MHz/1 PPS

Performance Description:

Octoclock-LW-G is a high precision clock source device distribution system. This is very useful for users who wish to set up a multi-channel system and synchronize to a common reference time. For example, we can use Octoclock-G to coherent the USRP X310 and synchronize with the system. This enables many phased array applications, such as beamforming, super-resolution direction finding, the combination of diversity, or the design of MIMO transceivers.

The OctoClock-G CDA-2990 can generate 8 10MHz local oscillators and 8 1PPS via built-in GPSDO or external sources. Users can freely switch these sources on the panel, and in the event of a failure, these sources can be switched automatically.

GPSDO serves as a reference and can be synchronized to the GPS timing standard. This allows developers to tune multichannel systems within 50 nanoseconds. When GPSDo is not locked to the GPS satellite, it still provides a 10 MHz and 1 PPS signal with an accuracy of better than 25 ppb.

NOTE: The Ethernet port shown on the front panel of the appliance is not currently functional. Future software upgrades will be functional.

Technical parameters:
