High-performance software defined radio equipment LUOWAVE 3980

FPGA unit:

RF Unit:

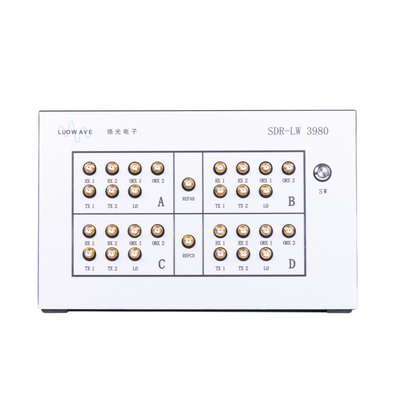

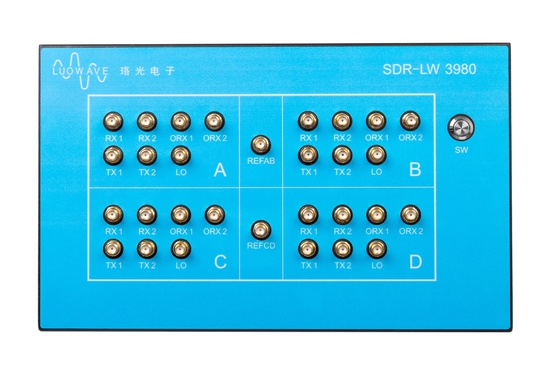

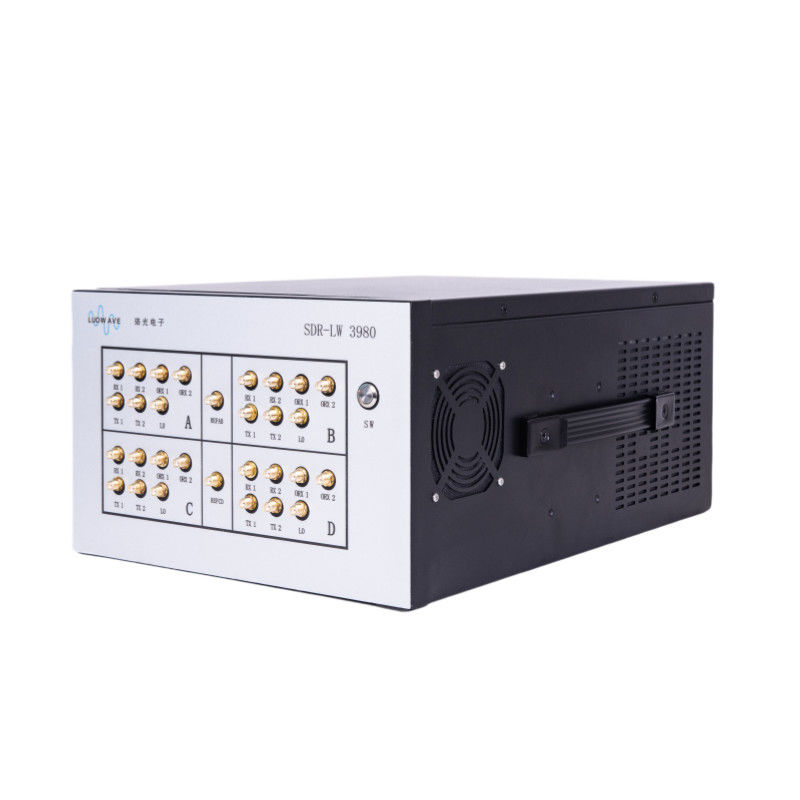

LUOWAVE 3980 is an 8-channel high-performance universal software defined radio peripheral launched by Wuhan Luoguang Electronics Co., Ltd. Frequency coverage is from 75 MHz to 6 GHz, with a single channel bandwidth of up to 200 MHz. The FPGA features the resource-rich, user-programmable Xilinx MPSOC ZU11EG. Like all generic software-defined radio peripherals, the device supports popular open source tool processes, including software such as Ubuntu and GNU Radio.

Quad-core Arm® processors allow standalone operation (embedded mode) or host-based mode to run your application using an external host.

Zynq® UltraScale+ ™ MPSoC devices provide 64-bit processor scalability while combining real-time control with a hardware and software engine for graphics, video, waveform, and packet processing. Based on a general-purpose real-time processor and platform with programmable logic, quad applications processors and GPU (EG) devices, the possibilities for applications such as 5G wireless, next-generation ADAS and the Industrial Internet of Things.

The ADRV9009 is a highly integrated radio frequency (RF), agile transceiver that provides dual transmitters and receivers, integrated frequency synthesizers, and digital signal processing. The IC offers a diverse combination of high performance and low power consumption to meet the requirements of 4G and 5G macro cellular time division duplex (TDD) base station applications.

THE LUOWAVE3980 IS IDEAL FOR BUILDING A SERIES OF ADVANCED RESEARCH APPLICATIONS, INCLUDING STANDALISTIC 5G OR 802.11 DEVICE EMULATION, DEVELOPMENT OF MEDIA ACCESS CONTROL (MAC) ALGORITHMS, MULTIPLE INPUT MULTIPLE OUTPUT (MIMO) SYSTEMS, Heterogeneous networks, 5G transmission, RF withstand voltage sampling, spectral remote sensing, cognitive radio, beamforming and direction finding.
