Overview

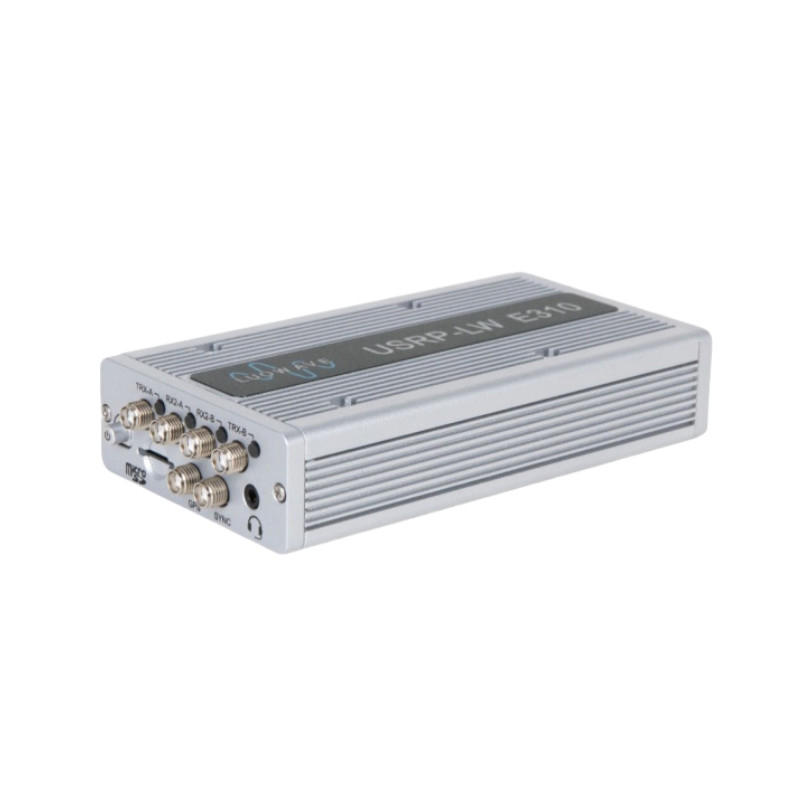

The USRP-LW E310 is an advanced embedded Software-Defined Radio (SDR) platform. It features the AD9361 RF transceiver, which supports 2x2 MIMO and operates across a frequency range of 70 MHz to 6 GHz with an instantaneous bandwidth of up to 56 MHz. The device measures 133 x 68 x 26.4 mm and consumes only 2-6 watts of power, making it an ideal solution for mobile and embedded applications due to its lightweight, low-power, and compact design. Baseband processing is performed on a reconfigurable Zynq 7020 System-on-Chip (SoC), which integrates a Xilinx 7-series FPGA with a dual-core ARM A9 processor, running a Linux operating system. Like all USRP devices, it leverages an open-source software architecture that provides comprehensive cross-platform support and compatibility with the Universal Hardware Driver (UHD). This enables seamless integration with a wide range of applications and SDR frameworks, including GNU Radio.

Features

• The maximum received signal bandwidth is 56M
• The frequency covers 70 MHz – 6 GHz
• 12-bit ADC/DAC
• Preselect the filter bank
• Dual-core ARM Cortex A9-866 MHz processor, Xilinx Zynq 7020 SoC FPGA
• 1GB DDR3 RAM for ARM CPUs and 512 MB DDR3 RAM for FPGA Logic
• Supports ARM processors with sampling rates up to 10MS/s

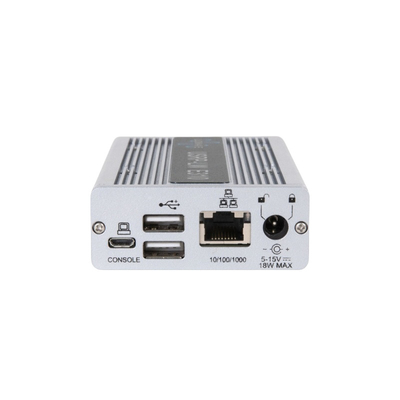

• Ethernet and USB interface control
• Built-in open source UHD3.9.2 and API interface
• Built-in 9-axis inertial measurement unit
• FPGA development framework that supports RFNoC
• Stereo audio output and mono microphone input
• Integrated global Positioning GPS receiver
• Dimensions: 133 x 68 x 26.4 mm Weight: 375 g
• Support GNU Radio

• GNU Radio

• Matlab

• UHD

• RFNoC
