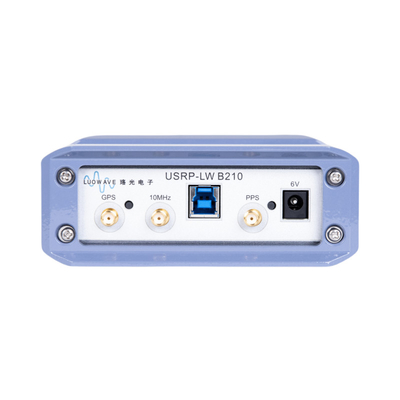

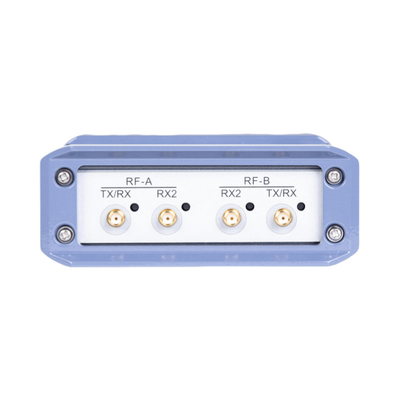

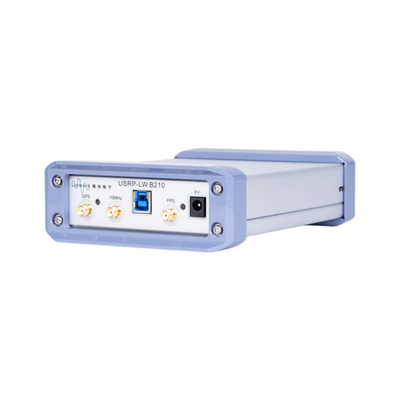

Ettus USRP B210 Compatible Spartan-6 FPGA AD9361 RF 70 MHz-6 GHz 56 MHz BW Each 2 Channels USRP Software Defined Radio Device

Name: Ettus USRP B210 Compatible Spartan-6 FPGA AD9361 RF 70 MHz-6 GHz 56 MHz BW Each 2 Channels USRP Software Defined Radio Device
Brand: Wuhan Tabebuia Technology Co., Ltd.
SKU: USRP-LW B210
Price: 126.00 USD
Availability: InStock

Brand Name:	Luowave
Model Number:	USRP-LW B210
Price:	$2,250.00

Detail Information

Product Description

Detail Information

Place of Origin:

China

Frequency Range:

70 MHz-6 GHz

Bandwidth:

56 MHz Each

Channel:

2T2R

Connector:

USB3.0

FPGA:

Spartan-6 FPGA

Weight:

0.695Kg

Size:

17.5*10*1.7cm

Highlight:

USRP-LW B210 56 MHz BW

USRP-LW B210 Spartan-6 FPGA

USRP-LW B210 70 MHz-6 GHz

Product Description

Overview

The USRP-LW B210 is a highly integrated, dual-channel Software-Defined Radio (SDR) device that supports an RF frequency range of 70 MHz to 6 GHz. It features a high-speed USB 3.0 interface and is supported by open-source USRP Hardware Drivers (UHD), enabling compatibility with various SDR frameworks. The device utilizes programmable optional Xilinx Spartan-6 FPGA and an AD9361 RF front-end to provide a maximum real-time bandwidth of 56 MHz.

Features

Two-way transmission, highly integrated design
RF coverage range of 70MHz to 6GHz
Programmable Xilinx Spartan-6 FPGA
Provides a maximum real-time bandwidth of 56MHz
Various designs(Board, Module, Intergrated Chassis) meet the application requirements of different scenarios

Supported Development Tools

GNU Radio
Matlab
UHD
Labview

Specifications

DC Voltage Input	6V	GPS Lock TCXO Accuracy	<1ppb
ADC Sampling Rate (Max)	61.44 MSps	Single-sideband Mirroring	-40/-50dBc
ADC Sampling Rate (Max)	61.44 MSps	LO Rejection(1GHz)	-40/-50dBc
ADC Resolution	12 bits	1GHz Phase Noise	-102dBc/Hz@10KHz
ADC Wideband SFDR	78dBc	5GHz Phase Noise	-91dBc/Hz@10KHz
DAC Sampling Rate	61.44 MSps	Output Power	16dBm
DAC Resolution	12 bits	IIP3	-20dBm
Maximum Tansfer Rate With Host (16b)	61.44 MSps	Noise Figure	<8.5dB
Local Oscillator Accuracy	±2.0ppm	Unlock GPS TCXO Accuracy	±75ppb
Processor(only for Chassis)	I7 8700	Memory(only for Chassis)	16G
Voltage(only for Chassis)	220V	Current(only for Chassis)	3A MAX
Size	Spartan6: 0.695kg	Weight	Spartan6: 17.5101.7cm

USRP SDR Comparison

P/N	USRP-LW X310	USRP-LW N321	USRP-LW N310	USRP-LW N210	USRP-LW E310	USRP-LW B210	USRP-LW B205 (Module)	USRP-LW B205 (Board)
Frequency Range	DC-6GHz	3MHz-6GHz	10MHz-6GHz	DC-6GHz	70MHz-6GHz
RF Daughterboard	Support two Daughterboards	Built-in two Daughterboards (non-replaceable)	Built-in two Daughterboards (non-replaceable)	Support one Daughterboards	Unsupported
Max. Bandwidth	160MHz each	200MHz each	100MHz each	8-bit width:80MHz each 16-bit width:25MHz each	56MHz each
Channels NO.	2T2R	2T2R	4T4R	1T1R	2T2R	2T2R	1T1R	1T1R
ADC/DAC	ADCs: ADS62P48 14-bit, configurable sampling rate: 184.32, 200 MS/s DACs: AD9146 16-bit, maximum sampling rate of 800 MS/s	ADCs:AD9695B 14-bit, configurable sampling rates: 200, 245.76 and 250 MS/s DACs:DAC37J82 16-bit, configurable sampling rate: 200, 245.76 and 250 MS/s	AD9371 ADCs: 16-bit, configurable sampling rates: 122.88, 125, and 153.6 MS/s DACs: 14-bit, configurable sampling rates: 122.88, 125, and 153.6 MS/s	ADCs:ADS62P42 14-bit 100MS/s DACs:AD9777 16-bit 400MS/s	AD9361 ADCs:12-bit 61.44MS/s DACs:12-bit 61.44MS/s		AD9364 ADCs:12位61.44MS/s DACs:12位61.44MS/s
FPGA Model	Xilinx Kintex-7 XC7K410T	Xilinx Zynq-7100 SoC FPGA	Xilinx Zynq-7100 SoC FPGA	Xilinx Spartan XC3SD3400A	Xilinx Zynq 7020 SoC FPGA	Xilinx Spartan 6 XC6SLX150	Xilinx XC7AT200	Xilinx Artix 7
Data Interface	GigE Port, 10GbE Port, PCIE x4	GigE Port, 10GbE Port, QSFP(2*10G) ,A-USB, micro-US	GigE Port, 10GbE Port, A-USB,micro USB	Gigabit Ethernet Port	Ethernet Port, USB2.0	USB3.0
Size (mm)	29022545	38022045	42522045	22516562	1336826	17912748	1076520	104*57
Unit Price	9999	23999	17999	3699	5999	2199	2199	599
