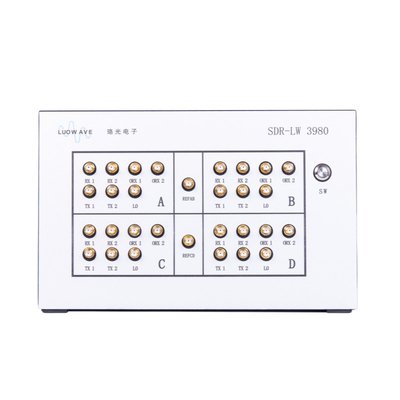

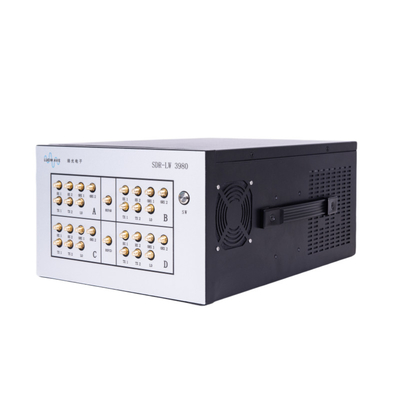

SDR-LW 3980 8 Channels ADRV-9009 x4 RF 75 MHz-6 GHz Tx BW 450 MHz RX BW 200 MHz 8 × PCIE BUS 1 × SFP+ i9 Processor USRP Integrated Software Defined Radio Device

Name: SDR-LW 3980 8 Channels ADRV-9009 x4 RF 75 MHz-6 GHz Tx BW 450 MHz RX BW 200 MHz 8 × PCIE BUS 1 × SFP+ i9 Processor USRP Integrated Software Defined Radio Device
Brand: Wuhan Tabebuia Technology Co., Ltd.
SKU: SDR-LW 3980
Price: 396.00 USD
Availability: InStock

Brand Name:	Luowave
Model Number:	SDR-LW 3980
Price:	$42,750.00

Detail Information

Product Description

Detail Information

Place of Origin:

China

Frequency Range:

75 MHz-6 GHz

Bandwidth:

Tx BW 450 MHz, RX BW 200 MHz

Channel:

8T8R

CPU:

Intel Core I9-9900K

Connector:

USB3, USB2, PCIe 3.0 X8, Gigabit, 10-gigabit Network Port

FPGA:

Xilinx Zynq UltraScale+ ZU11EG

Weight:

9.4Kg

Size:

42*28*17.5 CM

Highlight:

6 GHz SDR-LW 3980

8 Channels SDR-LW 3980

USRP Integrated SDR-LW 3980

Product Description

Overview

The SDR-LW 3980 is the latest 8-channel high-performance standalone Software-Defined Radio (SDR) device introduced by LUOWAVE. It integrates an onboard processor, FPGA, and RF front-end. The FPGA features the resource-rich, user-programmable Xilinx MPSoC ZU11EG. The SDR device comes with a built-in Ubuntu operating system and includes application software such as GNU Radio.

The Zynq UltraScale+ MPSoC incorporates a scalable 64-bit processor system, featuring an application processing unit (APU), a real-time processing unit (RPU), a graphics processing unit (GPU), and configurable programmable logic platforms. By combining real-time control with hardware and software engines for graphics, video, waveform, and packet processing, this device enables limitless possibilities for applications such as 5G wireless communications, next-generation Advanced Driver Assistance Systems (ADAS), and the Industrial Internet of Things (IIoT).

The SDR-LW 3980 serves as an ideal platform for developing a wide range of advanced research applications, including the emulation of standalone 5G and 802.11 devices, development of Media Access Control (MAC) algorithms, implementation of multiple-input/multiple-output (MIMO) systems, design of heterogeneous networks, 5G transmission, RF compression sampling, spectral remote sensing, cognitive radio systems, beamforming, and direction finding.

Features

Processor:I9-9900K
Memory:DDR4 64GB
SFP+:10 Gbps
SSD:500GB
PCle:Gen3 x8
Main chip:Xilinx Zynq UltraScale+ ZU11EG
PS:Quad-core ARMO Cortex-A53,Dual-core Cortex-R5 real-time processors,Mali-400 MP2 graphics processing
PL:653k System Logic Cells
Memory:PS 4 GByte DDR4(x64) (with ECC),PL 2 GByte DDR4(x32)

Supported Development Tools

GNU Radio
Matlab
Labview

Specifications

Processor	I9-9900K	Main Chip	ADRV-9009 x4
Memory	DDR4 64GB	Number of Tansmit Channels	8
SFP+	10Gbps	Number of Receive Channels	8
SSD	500GB	Observation of the Receive Channels Number	8
PCIe	Gen3 x8	Receive Maximum Bandwidth	200MHz
Main chip	Xilinx Zynq UltraScale+ ZU11EG	Transmit Maximum Bandwidth	450MHz
PS	Quad-core ARM® Cortex-A53	Maximum Observation Receiver Bandwidth	450MHz
	Dual-core Cortex-R5 real-time processors	Frequency Range	75MHz-6GHz
	Mali-400 MP2 graphics processing	RX ADC Bits	16bits
PL	653k System Logic Cells	TX DAC Bits	14bits
Memory	PS 4 GByte DDR4(x64) (with ECC)	Multi-chip Phase Synchronization	Support
Memory	PL 2 GByte DDR4(x32)	Size	422817.5 CM
Weight	9.4Kg

Integrated SDR Comparison

P/N	Frequency Range	CPU	Max.Bandwidth	Channel	ADC/DAC	FPGA	Connector	Size(mm)
SDR-LW 2972	70MHz-6GHz	Intel Core i7 8700	56MHz	2T2R	AD9361 ADCs:12-bit 61.44 MS/s DACs:12-bit 61.44MS/s	Xilinx Artix-7 XC7A 200T	USB3.0,RJ45	23530085
SDR-LW 2974	10MHz-6GHz	Intel Core i7 9700	160MHz	2T2R	ADCs:ADS62P48 14-bit,configurable sampling rate:184.32,200 MS/s DACs:AD9146 16位,800 MS/s	Xilinx Kintex-7 XC7K410T	USB3.0,Gigabit, 10-gigabit network port,PCIe, Gen 2 x4	235265135
SDR-LW 2974 Note	10MHz-6GHz	Intel Core i7 9700	160MHz	2T2R		Xilinx Kintex-7 XC7K410T	USB3.0,Gigabit, 10-gigabit network port,PCIe, Gen 2 x4	430300135
SDR-LW 2975	70MHz-6GHz	Intel Core i7 8700	56MHz	2T2R	AD9361 ADCs:12-bit 61.44 MS/s DACs:12-bit 61.44MS/s	Xilinx Zynq-7020	USB3.0,RJ45,PCIe,Genx4,HDMI	21023585
SDR-LW 3980	75MHz-6GHz	Intel Core i9-9900K	Tx:450MHz RX:200MHz	8T8R	ADRV9009 ADCs:16-bit Max. sampling rate 245.76MS/s DACs:14-bit Max. sampling rate 491.52MS/s	Xilinx Zynq UltraScale+ ZU11EG	USB3, USB2, PCIe 3.0 x8, Gigabit, 10-gigabit network port	280410175
SDR-LW 4940	1MHz-7.2GHz	Intel Core I9-9900K	400MHz	4T4R	ADCs:12-bit DACs:14-bit	Xilinx Zynq Ultrascale+ ZU28DR RFSoc	1 × QSFP+, 2× RJ45, USB 3.0	430378145

Who are we

China Leading Software Radio Equipment and Solutions Provider Since 2012, Hot-selling products includes:

USRP-LW modular SDR, RF daughterboards
SDR-LW integrated SDR
COUNTER-UAV Series Products

SDR-LW 3980 8 Channels ADRV-9009 x4 RF 75 MHz-6 GHz Tx BW 450 MHz RX BW 200 MHz 8 × PCIE BUS 1 × SFP+ i9 Processor USRP Integrated Software Defined Radio Device 0

Why us

SDR-LW 3980 8 Channels ADRV-9009 x4 RF 75 MHz-6 GHz Tx BW 450 MHz RX BW 200 MHz 8 × PCIE BUS 1 × SFP+ i9 Processor USRP Integrated Software Defined Radio Device 1

Please do not hesitate to contact me if you need any further information.

Skype: 86--18062514745

E-mail: chen@luowave.com
