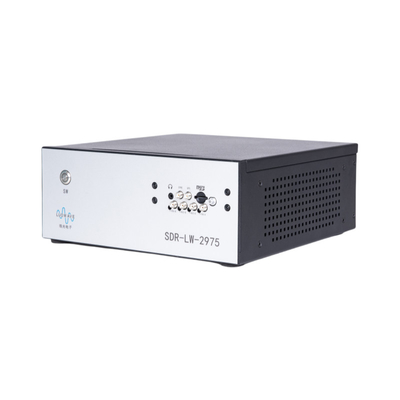

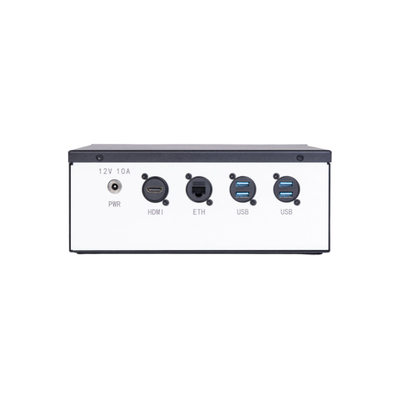

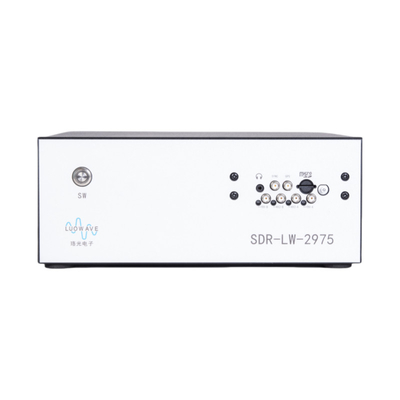

SDR-LW 2975 AD9361 RF 70 MHz-6 GHz 56 MHz BW Each 2 Channels 4 × PCIE BUS 2 × USB 3.0 i7 Processor USRP Integrated Software Defined Radio Device

Name: SDR-LW 2975 AD9361 RF 70 MHz-6 GHz 56 MHz BW Each 2 Channels 4 × PCIE BUS 2 × USB 3.0 i7 Processor USRP Integrated Software Defined Radio Device
Brand: Wuhan Tabebuia Technology Co., Ltd.
SKU: SDR-LW 2975
Price: 130.00 USD
Availability: InStock

Brand Name:	Luowave
Model Number:	SDR-LW 2975
Price:	$11,250.00

Detail Information

Product Description

Detail Information

Place of Origin:

China

Frequency Range:

70 MHz-6 GHz

Bandwidth:

56 MHz Each

Channel:

2T2R

CPU:

Intel Core I7 8700

Connector:

USB3.0, RJ45, PCIe, Genx4, HDMI

FPGA:

Xilinx Zynq UltraScale+ ZU11EG

Weight:

2.5Kg

Size:

21*23.5*8.5 CM

Highlight:

6 GHz SDR-LW 2975

i7 Processor SDR-LW 2975

2 Channels SDR-LW 2975

Product Description

Overview

The SDR-LW 2975 is a high-performance embedded Software-Defined Radio (SDR). Like other USRP devices, it leverages an open-source software architecture that provides comprehensive cross-platform support and compatibility with the Universal Hardware Driver (UHD). This enables seamless integration with a wide range of applications and SDR frameworks, including GNU Radio.

Features

i7 processor
Linux real-time operating system
500GB SSD, 16GB RAM
AD9361 12bits ADCDAC
70MHz-6GHz frequency coverage
2 USB 3.0 ports
HDMI interface
PCIe Gen x4 interface
Built-in Zynq 7020 FPGA
Support external reference clock and PPS signal reference
Support 2 transmit 2 receive, up to 56MHz instantaneous bandwidth per channel
RFNoC FPGA development framework
Support for GNU Radio

Supported Development Tools

GNU Radio
Matlab
Labview

Specifications

Transmit		Receive
Number of Channels	2	Number of Channels	2
Frequency Range	70MHz-6GHz	Frequency Range	70MHz-6GHz
Frequency Stepping	≤1KHz	Frequency Stepping	≤1KHz
Maximum Output Power	≥10dBm	Maximum Input Power	-15dBm
		Gain Range	0-75dB
Gain Stepping	0.5dB	Gain Stepping	1dB
Maximum Real-time Bandwidth	56MHz	Maximum Real-time Bandwidth	56MHz
FPGA and Baseband		Industrial Computer
FPGA	ZYNQ 7020	Processor	I7 8700
DRAM	1G	Memory Card	16G
ADC Resolution	12 bits	RJ45	1Gbps
DAC Resolution	12 bits	Power
ADC Sampling Rate	61.44 MSps	Voltage	12V
Environment		Current	10A Max
Operating Temperature	0-50℃	Physical Properties
Humidity	10%-90% (Non-condensing)	Size	2123.58.5 CM
Humidity	10%-90% (Non-condensing)	Weight	2.5Kg

Integrated SDR Comparison

P/N	Frequency Range	CPU	Max.Bandwidth	Channel	ADC/DAC	FPGA	Connector	Size(mm)
SDR-LW 2972	70MHz-6GHz	Intel Core i7 8700	56MHz	2T2R	AD9361 ADCs:12-bit 61.44 MS/s DACs:12-bit 61.44MS/s	Xilinx Artix-7 XC7A 200T	USB3.0,RJ45	23530085
SDR-LW 2974	10MHz-6GHz	Intel Core i7 6822EQ 2GHz Quad Core Processor	160MHz	2T2R	ADCs:ADS62P48 14-bit,configurable sampling rate:184.32,200 MS/s DACs:AD9146 16位,800 MS/s	Xilinx Kintex-7 XC7K410T	USB3.0,Gigabit, 10-gigabit network port,PCIe, Gen 2 x4	235265135
SDR-LW 2974 Note	10MHz-6GHz	Intel Core i7 6822EQ 2GHz Quad Core Processor	160MHz	2T2R		Xilinx Kintex-7 XC7K410T	USB3.0,Gigabit, 10-gigabit network port,PCIe, Gen 2 x4	430300135
SDR-LW 2975	70MHz-6GHz	Intel Core i7 8700	56MHz	2T2R	AD9361 ADCs:12-bit 61.44 MS/s DACs:12-bit 61.44MS/s	Xilinx Zynq-7020	USB3.0,RJ45,PCIe,Genx4,HDMI	21023585
SDR-LW 3980	75MHz-6GHz	Intel Core i9-9900K	Tx:450MHz RX:200MHz	8T8R	ADRV9009 ADCs:16-bit Max. sampling rate 245.76MS/s DACs:14-bit Max. sampling rate 491.52MS/s	Xilinx Zynq UltraScale+ ZU11EG	USB3, USB2, PCIe 3.0 x8, Gigabit, 10-gigabit network port	280410175
SDR-LW 4940	1MHz-7.2GHz	Intel Core I9-9900K	400MHz	4T4R	ADCs:12-bit DACs:14-bit	Xilinx Zynq Ultrascale+ ZU28DR RFSoc	1 × QSFP+, 2× RJ45, USB 3.0	430378145
