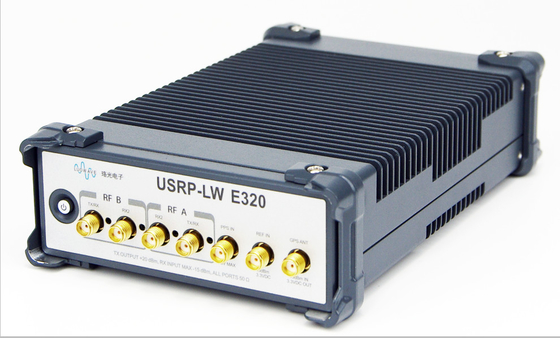

Ettus USRP E320 Compatible | USRP-LW E320 2T2R RF 70 MHz-6 GHz 56 MHz BW Each 12-bit ADC/DAC USRP Software Defined Radio Device

Detail Information

Product Description

Detail Information

Highlight:

12-bit ADC/DAC USRP-LW E320

6 GHz USRP-LW E320

2T2R USRP-LW E320

Product Description

The USRP-LW E320 is a feature-rich, high-performance embedded Software Defined Radio (SDR) device that incorporates optimized upgrades in stream processing, synchronization, integration, fault recovery, and remote management capabilities.

Features

RF Front-end: Equipped with AD9361 RF transceiver supporting 2×2 MIMO configuration
Frequency Range: 70 MHz to 6 GHz with up to 56 MHz instantaneous bandwidth
Processing Unit: Xilinx Zynq-7045 SoC combining FPGA acceleration and dual-core ARM CPU for standalone or cooperative operation modes

Supported Development Tools

GNU Radio
Matlab
C/C++
Python
VIVADO

Specifications

RF Parameter		Power Supply
IIP3 (at typical NF)	-20 dBm	DC input voltage current	10-14 V,3 A
Maximum Output Power	＞10 dBm	Maximum power consumption	30W
Receiver Noise Figure	＜8.5 dB	Size
Converter Module Parameters		Size	173 x 106 x 45 mm
ADC Sampling Rate (Max)	61.44 MSps	Working Environment
ADC Resolution	12 bits	Operating Temperature Range	0-45℃
DAC Sampling Rate	61.44 MSps	Storage Temperature Range	-40-85℃
DAC Resolution	12 bits	Operating Humidity Range	10%-90%
Host PC Maximum Sampling Rate	61.44MS/s	Storage Humidity Range	5%-95%

USRP SDR Comparison

P/N	USRP-LW X310	USRP-LW N321	USRP-LW N310	USRP-LW N210	USRP-LW E310	USRP-LW B210	USRP-LW B205 (Module)	USRP-LW B205 (Board)
Frequency Range	DC-6GHz	3MHz-6GHz	10MHz-6GHz	DC-6GHz	70MHz-6GHz
RF Daughterboard	Support two Daughterboards	Built-in two Daughterboards (non-replaceable)	Built-in two Daughterboards (non-replaceable)	Support one Daughterboards	Unsupported
Max. Bandwidth	160MHz each	200MHz each	100MHz each	8-bit width:80MHz 16-bit width:25MHz	56MHz each
Channels NO.	2T2R	2T2R	4T4R	1T1R	2T2R	2T2R	1T1R	1T1R
ADC/DAC	ADCs: ADS62P48 14-bit, configurable sampling rate: 184.32, 200 MS/s DACs: AD9146 16-bit, maximum sampling rate of 800 MS/s	ADCs:AD9695B 14-bit, configurable sampling rates: 200, 245.76 and 250 MS/s DACs:DAC37J82 16-bit, configurable sampling rate: 200, 245.76 and 250 MS/s	AD9371 ADCs: 16-bit, configurable sampling rates: 122.88, 125, and 153.6 MS/s DACs: 14-bit, configurable sampling rates: 122.88, 125, and 153.6 MS/s	ADCs:ADS62P42 14-bit 100MS/s DACs:AD9777 16-bit 400MS/s	AD9361 ADCs:12-bit 61.44MS/s DACs:12-bit 61.44MS/s		AD9364 ADCs:12位61.44MS/s DACs:12位61.44MS/s
FPGA Model	Xilinx Kintex-7 XC7K410T	Xilinx Zynq-7100 SoC FPGA	Xilinx Zynq-7100 SoC FPGA	Xilinx Spartan XC3SD3400A	Xilinx Zynq 7020 SoC FPGA	Xilinx Spartan 6 XC6SLX150	Xilinx XC7AT200	Xilinx Artix 7
Data Interface	GigE Port, 10GbE Port, PCIE x4	GigE Port, 10GbE Port, QSFP(2*10G) ,A-USB, micro-US	GigE Port, 10GbE Port, A-USB,micro USB	Gigabit Ethernet Port	Ethernet Port, USB2.0	USB3.0
Size (mm)	29022545	38022045	42522045	22516562	1336826	17912748	1076520	104*57
Unit Price	9999	23999	17999	3699	5999	2199	2199	599
