USRP-LW B205 | 1TX 1RX Usrp Universal Software Radio Peripheral B205 Mini 12 Bits

Name: USRP-LW B205 | 1TX 1RX Usrp Universal Software Radio Peripheral B205 Mini 12 Bits
Brand: Wuhan Tabebuia Technology Co., Ltd.
SKU: B205mini
Price: 488.00 USD
Availability: InStock

Brand Name:	Luowave
Model Number:	B205mini
MOQ:	1 Piece
Price:	USD
Delivery Time:	Spot Goods or 30 Days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Number Of Channels：:

1RX，1TX

Frequency Range：:

70MHz-6GHz

Bandwidth::

Up To 56MHZ

Size::

83.3 X 50.8 X 8.4 Mm

FPGA::

Xilinx Spartan-6 XC6SLX150 FPGA

DAC::

12 Bits

Packaging Details:

Paper Box\Paper Carton

Supply Ability:

1 Piece

Highlight:

1TX Universal Software Radio Peripheral

1RX Universal Software Radio Peripheral

Universal Software Radio Peripheral 1TX 1RX

Product Description

Overview

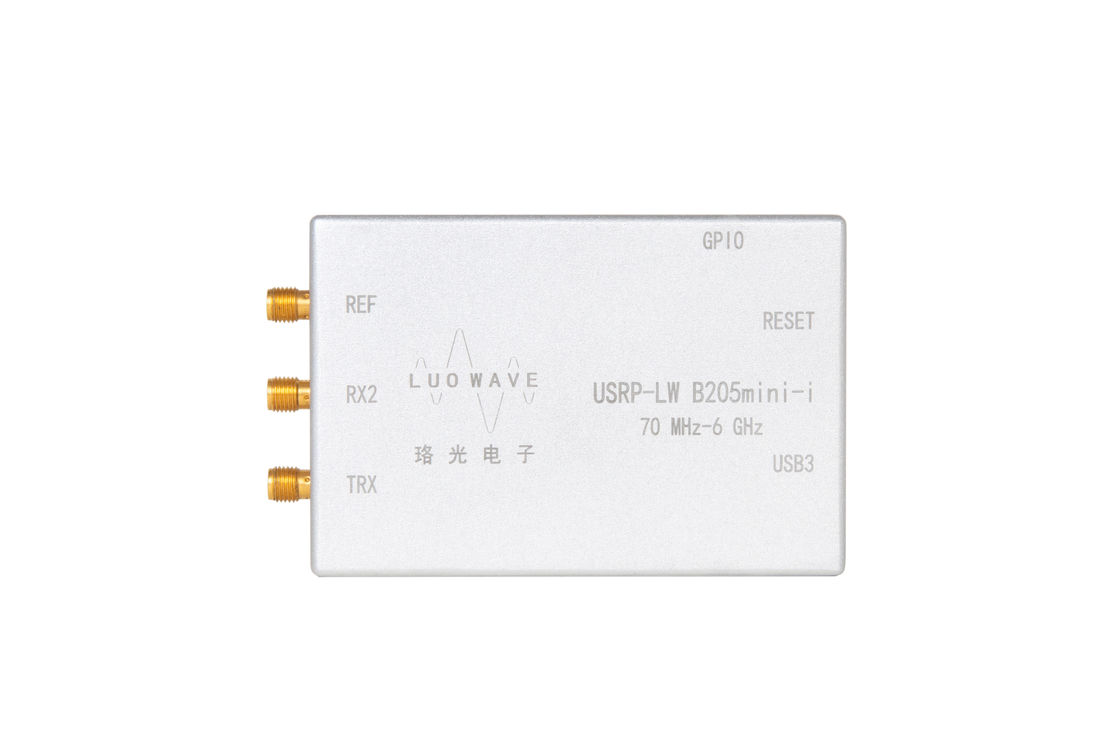

The B205mini delivers a 1×1 SDR/cognitive radio in the size of a business card. With a wide frequency range from 70 MHz to 6 GHz and a user-programmable, industrial-grade Xilinx Spartan-6 XC6SLX150 FPGA, this flexible and compact platform is ideal for both hobbyist and OEM applications. The RF front end uses the Analog Devices AD9364 RFIC transceiver with 56 MHz of instantaneous bandwidth. The board is bus-powered by a high-speed USB 3.0 connection for streaming data to the host computer. The USRP B205mini-i also includes connectors for GPIO, JTAG, and synchronization with a 10 MHz clock reference or PPS time reference input signal. The USRP Hardware Driver software API supports all USRP products and enables users to efficiently develop applications then seamlessly transition designs between platforms as requirements expand.

Features

Wide frequency range: 70 MHz – 6 GHz Up to 56 MHz of instantaneous bandwidth

Full duplex operation

User-programmable, industrial-grade Xilinx Spartan-6 XC6SLX150 FPGA

Fast and convenient bus-powered USB 3.0 connectivity

Synchronization with 10 MHz clock reference or PPS time reference GPIO and JTAG for control and debug capabilities

Compare size with b210
