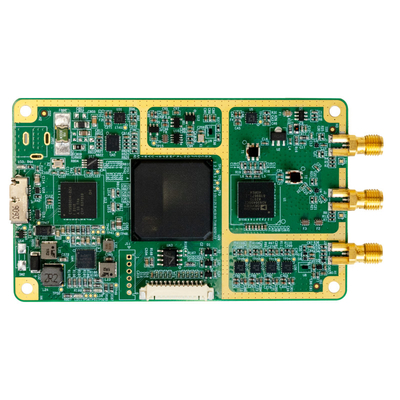

USRP-LW B205-I | Artix™ 7 100T FPGA 70MHz-6GHz Frequency Range 56MHz Bandwidth 1T1R USRP SDR

Name: USRP-LW B205-I | Artix™ 7 100T FPGA 70MHz-6GHz Frequency Range 56MHz Bandwidth 1T1R USRP SDR
Brand: Wuhan Tabebuia Technology Co., Ltd.
SKU: USRP-LW B205-I
Price: 975.00 USD
Availability: InStock

Brand Name:	Luowave
Model Number:	USRP-LW B205-I
Price:	$975.00

Detail Information

Product Description

Detail Information

Place of Origin:

China

Frequency Range:

70 MHz-6 GHz

Bandwidth:

56 MHz Each

Channel:

1T1R

Connector:

USB3.0

FPGA:

Artix™ 7 XC7A 100T

Weight:

0.04kg

Size:

10.4 × 5.7 Cm

Highlight:

56MHz Bandwidth USRP-LW B205-I

100T FPGA USRP-LW B205-I

70MHz-6GHz USRP-LW B205-I

Product Description

Overview

The USRP-LW B205-I is a compact consumer-grade software-defined radio equipment. This device features a programmable Xilinx Artix™ 7 XC7A 100T FPGA and a transmit front-end using ADI's AD9364 RF integrated circuit, making it acost-effective 1T1R transceiver.

Features

RF range from 70MHz-6GHz
56MHz maximum real-time bandwidth and 61.44 MSps refeerence sample rate
The open source UHD supports multiple frameworks
Require UHD 3.9.2 or newer driver version support
Support high-speed USB 3.0 connection, USB power supply
GPIO common interface and JTAG debugging capabilities
Support 10 MHz reference clock or PPS synchronization version up to
Support XILINX VIVADO 2019.2

Supported Development Tools

GNU Radio
Matlab
UHD
Labview

Specifications

DC Voltage Input	5V	ADC Sampling Rate (Max)	61.44 MSps
IIP3	-21dBm	ADC Resolution	12bits
Output Power	>10dBm	DAC Sampling Rate	61.44 MSps
Noise Figure	<8.5dB	DAC Resolution	12bits
Local Oscillator Accuracy	±2.0ppm	Maximum Tansfer Rate With Host (16b)	61.44 MSps
Size	10.4 × 5.7 cm	Weight	0.04kg

USRP SDR Comparison

P/N	USRP-LW X310	USRP-LW N321	USRP-LW N310	USRP-LW N210	USRP-LW E310	USRP-LW B210	USRP-LW B205 (Module)	USRP-LW B205 (Board)
Frequency Range	DC-6GHz	3MHz-6GHz	10MHz-6GHz	DC-6GHz	70MHz-6GHz
RF Daughterboard	Support two Daughterboards	Built-in two Daughterboards (non-replaceable)	Built-in two Daughterboards (non-replaceable)	Support one Daughterboards	Unsupported
Max. Bandwidth	160MHz each	200MHz each	100MHz each	8-bit width:80MHz each 16-bit width:25MHz each	56MHz each
Channels NO.	2T2R	2T2R	4T4R	1T1R	2T2R	2T2R	1T1R	1T1R
ADC/DAC	ADCs: ADS62P48 14-bit, configurable sampling rate: 184.32, 200 MS/s DACs: AD9146 16-bit, maximum sampling rate of 800 MS/s	ADCs:AD9695B 14-bit, configurable sampling rates: 200, 245.76 and 250 MS/s DACs:DAC37J82 16-bit, configurable sampling rate: 200, 245.76 and 250 MS/s	AD9371 ADCs: 16-bit, configurable sampling rates: 122.88, 125, and 153.6 MS/s DACs: 14-bit, configurable sampling rates: 122.88, 125, and 153.6 MS/s	ADCs:ADS62P42 14-bit 100MS/s DACs:AD9777 16-bit 400MS/s	AD9361 ADCs:12-bit 61.44MS/s DACs:12-bit 61.44MS/s		AD9364 ADCs:12位61.44MS/s DACs:12位61.44MS/s
FPGA Model	Xilinx Kintex-7 XC7K410T	Xilinx Zynq-7100 SoC FPGA	Xilinx Zynq-7100 SoC FPGA	Xilinx Spartan XC3SD3400A	Xilinx Zynq 7020 SoC FPGA	Xilinx Spartan 6 XC6SLX150	Xilinx XC7AT200	Xilinx Artix 7
Data Interface	GigE Port, 10GbE Port, PCIE x4	GigE Port, 10GbE Port, QSFP(2*10G) ,A-USB, micro-US	GigE Port, 10GbE Port, A-USB,micro USB	Gigabit Ethernet Port	Ethernet Port, USB2.0	USB3.0
Size (mm)	29022545	38022045	42522045	22516562	1336826	17912748	1076520	104*57
Unit Price	9999	23999	17999	3699	5999	2199	2199	599

Who are we

China Leading Software Radio Equipment and Solutions Provider Since 2012, Hot-selling products includes:

USRP-LW modular SDR, RF daughterboards
SDR-LW integrated SDR
COUNTER-UAV Series Products

USRP-LW B205-I | Artix™ 7 100T FPGA 70MHz-6GHz Frequency Range 56MHz Bandwidth 1T1R USRP SDR 8

Why us

USRP-LW B205-I | Artix™ 7 100T FPGA 70MHz-6GHz Frequency Range 56MHz Bandwidth 1T1R USRP SDR 9

Please do not hesitate to contact me if you need any further information.

Skype: 86--18062514745

E-mail: chen@luowave.com
