Created with Pixso. USRP-LW B210 | Highly Integrated 6GHz USB SDR Transceiver ETTUS USRP B210 High Speed
USRP-LW B210 | Highly Integrated 6GHz USB SDR Transceiver ETTUS USRP B210 High Speed
  • Name
  • Name
  • Name
  • Name
  • Name

USRP-LW B210 | Highly Integrated 6GHz USB SDR Transceiver ETTUS USRP B210 High Speed

Brand Name: Luowave
Model Number: B210
MOQ: 1 Piece
Price: USD
Delivery Time: Spot Goods or 30 Days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Packaging Details:
Paper Box\Paper Carton
Supply Ability:
1 Piece
Highlight:

USB SDR Transceiver Highly integrated

,

USB SDR ETTUS USRP B210

,

ETTUS USRP B210 USB SDR Transceiver

Product Description

Software Defined Radio,USRP-LW B210, Compatible with ETTUS USRP B210

Product Overview

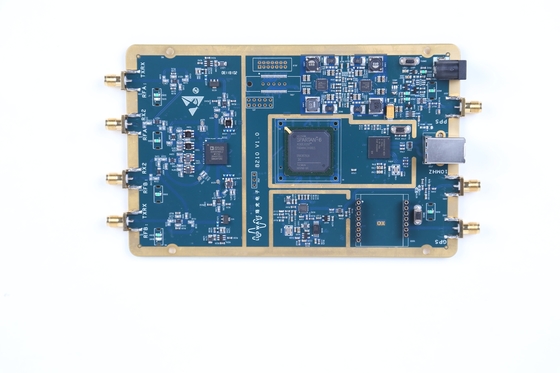

The USRP B210 provides a fully integrated, single-board, Universal Software Radio Peripheral platform with continuous frequency coverage from 70 MHz – 6 GHz. Designed for low-cost experimentation, it combines the AD9361 RFIC direct-conversion transceiver providing up to 56MHz of real-time bandwidth, an open and reprogrammable Spartan6 FPGA, and fast SuperSpeed USB 3.0 connectivity with convenient bus-power

Main Features:

1. Highly integrated, two transceivers with RF range from 70 MHz to 6 GHz

2. Support for high speed USB 3.0 connectivity

3. Open source UHD supports multiple frameworks

4. User-programmable Spartan 6 XC6SLX150FPGA, a fully integrated mixed-signal baseband direct conversion transceiver that provides bandwidth up to 56MHz

Technical Parameters:

USRP-LW B210 | Highly Integrated 6GHz USB SDR Transceiver ETTUS USRP B210 High Speed 0

Low cost software radio:

Experiment with the USRP B210 across a wide range of applications including: FM and TV broadcast, cellular, GPS, WiFi, ISM, and more. Users can immediately begin prototyping in GNURadio and participate in the open-source SDR community. Full support by the UHD software allows seamless code reuse from existing designs, compatibility with open-source applications like HDSDR and OpenBTS, and an upgrade path to industry-ready USRP systems to meet application requirements. Here are some examples of what you can do with a USRP B210.

Included in This Equipment:

1. USRP-LW B210

2. USB 3.0 cable

3. Power Supply

Please do not hesitate to contact me if you need any further information.

Whatsapp/skype/Wechat: +8618062514745 Web:https://www.luowave.com/en/


Tags:

6GHz USB SDR Transceiver

DC6V Software Defined Radio

ETTUS USRP B210 high speed
