Luowave Precisionwave Embedded SDR HDMI Interface High Performance

Name: Luowave Precisionwave Embedded SDR HDMI Interface High Performance
Brand: Wuhan Tabebuia Technology Co., Ltd.
SKU: LUOWAVE SDR-LW 2975
Price: 488.00 USD
Availability: InStock

Brand Name:	Luowave
Model Number:	LUOWAVE SDR-LW 2975
MOQ:	1 Piece
Price:	USD
Delivery Time:	Spot Goods or 30 Days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

Paper Box\Paper Carton

Supply Ability:

1 Piece

Highlight:

HDMI interface Embedded SDR

High performance embedded SDR 2975

embedded sdr HDMI

Product Description

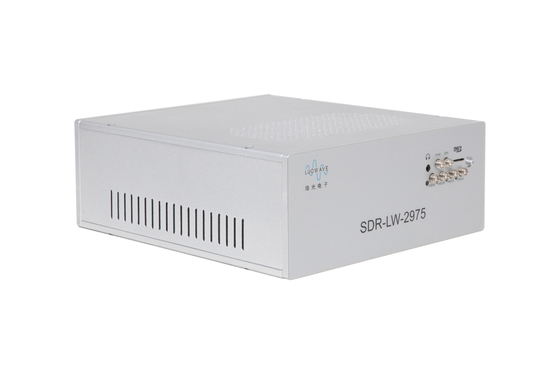

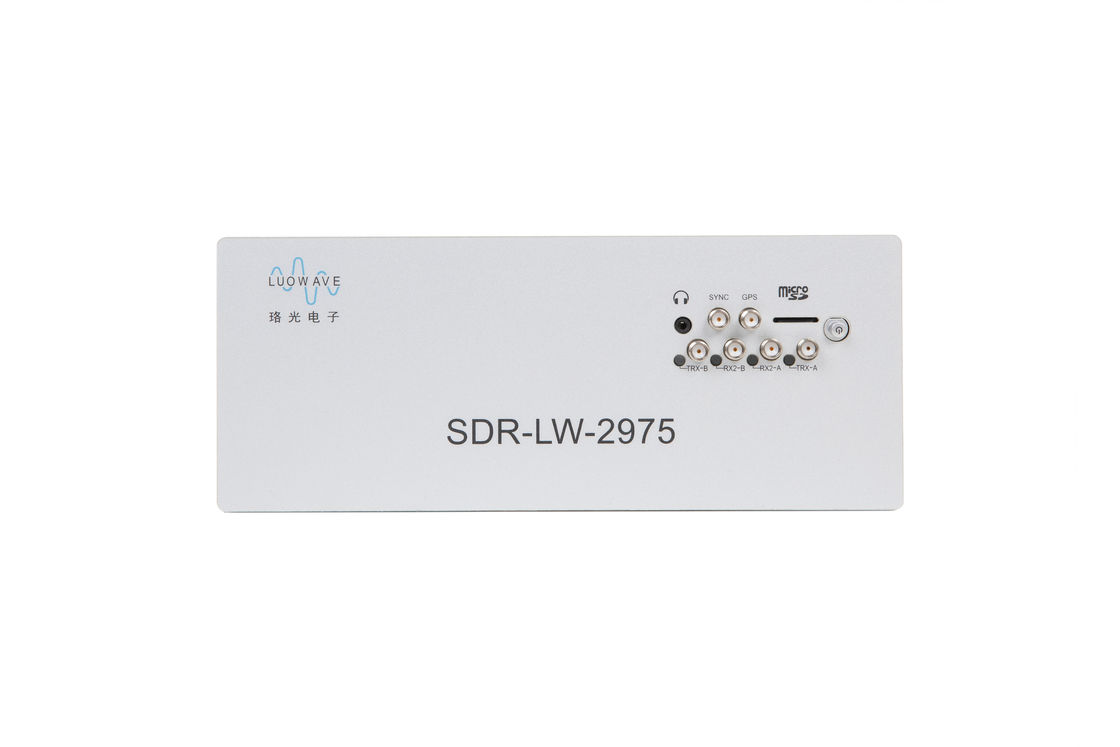

LUOWAVE SDR-LW 2975

Product Introduction

SDR-LW 2975 is a High performance embedded SDR stand-alone device, it consist of a onboard processor, FPGA and RF Front-end. The product has built-in Intel i7 processor, 500GB SSD, 16GB memory. The RF Front-end adopts AD9361 RF set processing device, 2x2 MIMO supported, operating frequency band range from 70MHz to 6GHz, maximum bandwidth is 56MHz. The baseband processing is conduct on the Linux OS which is running on the reconfigurable Zynq 7020 IC together with the Xilinx 7 series FPGA and integrated dual-core ARM A9 processor. Just like the other USRP devices, the open source software framework provide the ability of cross-platform support and USRP hardware drive(HUD). HUD support the majority of applications and SDR framework, such as GNU Radio.

Main Featuren

i7 processor, with Linux Real-Time O

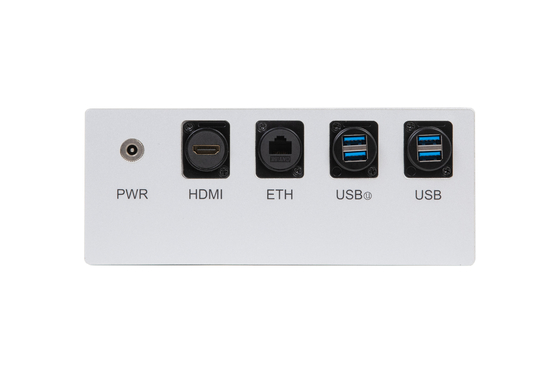

HDMI interface

500GB SSD, 16GB memory

2 of USB 3.0 interface

Operating frequency range from 70Mhz to 6GHz

Up to 56M instant bandwidth per channel

Build-in zynq 7020 FPGA

2TRX supported

External clock reference and PPS supported

RFNoC FPGA development framework

GNU Radio supported

RF Index

Transmit		Receive
channel	2	channel	2
Frequency	70MHz-6GHz	Frequency	70MHz-6GHz
Frequency Step	less than 1KHz	Frequency Step	less than 1KHz
Maximum Power	≥10dBm	Maximum Power	-15 dBm
Range of Gain	31.5dB	Range of Gain	0 -37.5 dB
Gain Step	0.5dB	Gain Step	0.5dB
Maximum Instant Bandwidth	56MHz	Maximum Instant Bandwidth	56MHz
		Noise Figure	8dB

Tags:

SDR-LW 2975 AD9361 RF 70 MHz-6 GHz 56 MHz BW Each 2 Channels 4 × PCIE BUS 2 × USB 3.0 i7 Processor USRP Integrated Software Defined Radio Device
