56MHz B210 Usrp Software Defined Radio Device Real Time For ISMFM
  • Name
  • Name
  • Name
  • Name

56MHz B210 Usrp Software Defined Radio Device Real Time For ISMFM

Brand Name: Luowave
Model Number: LUOWAVE SDR-LW 2972
MOQ: 1 Piece
Price: USD
Delivery Time: Spot Goods or 30 Days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Packaging Details:
Paper Box\Paper Carton
Supply Ability:
1 Piece
Highlight:

2972 Embedded SDR

,

Embedded SDR 2972

,

usrp b210 Real Time 2972

Product Description

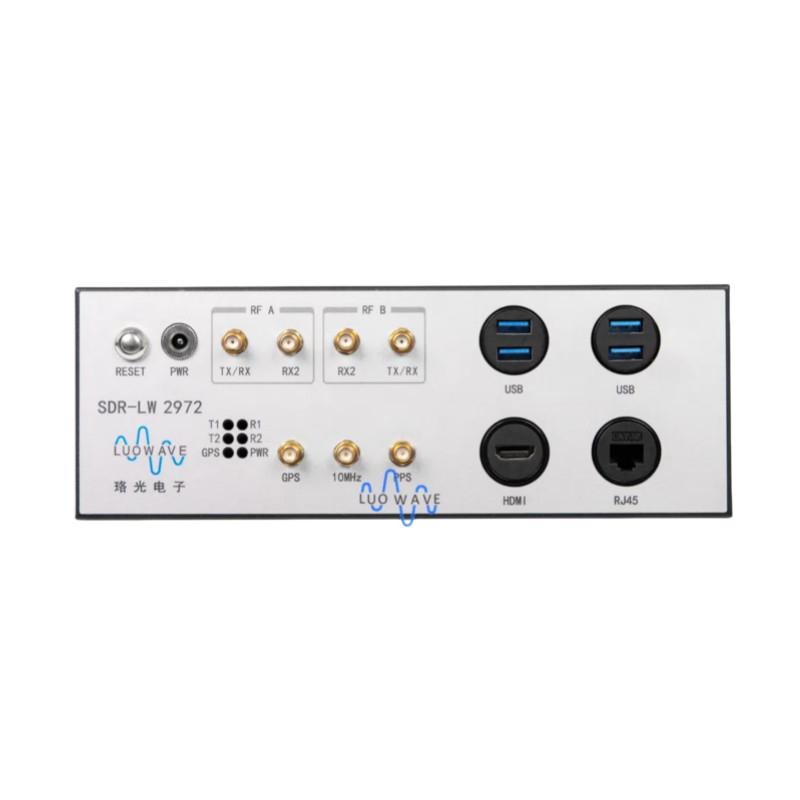

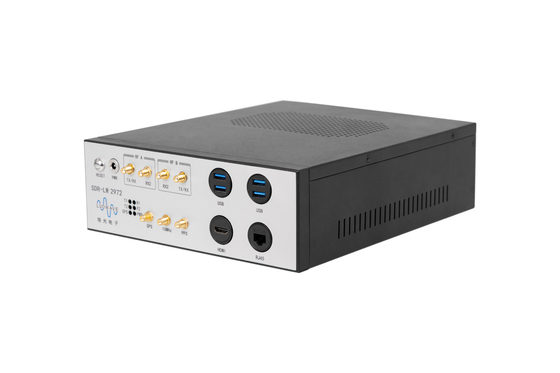

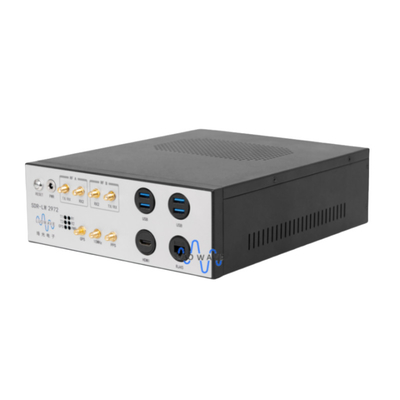

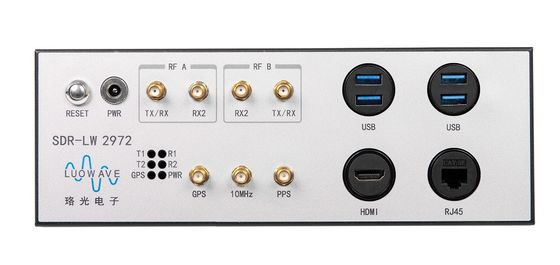

LUOWAVE SDR-LW 2972,All-in-one machine of usrp b210

The SDR-LW 2972 can be used for a wide range of applications, including radio, cell phone, GPS, WiFi, ISMFM and TV signals, etc. Users can use GNU Radio to quickly develop some radios, or participate in some open source software radio projects. On different USRP devices, UHD-based support allows users to reuse existing designs, such as HDSDR and OpenBTS, two open source applications that support multiple SDR-LW devices.
The SDR-LW 2972 adopts the design that the RF front end is integrated in the AD9361. The AD9361 supports the direct up and down conversion of the RF end, and can provide a bandwidth of 56MHz in real time. And the AD9361's two-way signal chain is used to provide coherent MIMO capability. The host implements the AD9361 signal processing and control through a series of operations on the FPGA of the model Spartan6 XC6SLX150 through USB 3.0.
SDR-LW 2972 provides a maximum throughput of 61.44MS/s. It is connected to a PC using the UHD API, and can provide a real-time bandwidth of up to 56M.

Main Feature



i7 processor, with Linux Real-Time OS



HDMI interface



External clock reference and PPS supported





500GB SSD, 16GB memory



2 of USB 3.0 interface



Operating frequency range from 70Mhz to 6GHz





Up to 56M instant bandwidth per channel



Build-in zynq 7020 FPGA
2TRX supported



RFNoC FPGA development framework



GNU Radio supported





RF Index

Transmit   Receive
Channel 2 Channel 2
Frequency 70MHz-6GHz Frequency 70MHz-6GHz
Frequency Step Less than 1KHz Frequency Step Less than 1KHz
Maximum Power ≥10dBm Maximum Power -15 dBm



Range of gain

 31.5dB Range of gain 0-37.5 dB
Gain Step 0.5dB Gain Step 0.5dB
Maximum instant Bandwidth 56MHz Maximum instant Bandwidth 56MHz
    Noise Figure

8dB
