Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Embedded SDR
Created with Pixso. High Precision Embedded SDR Ettus USRP E310 56MHz Bandwidth USB 3.0 Interface
High Precision Embedded SDR Ettus USRP E310 56MHz Bandwidth USB 3.0 Interface
  • Name
  • Name
  • Name

High Precision Embedded SDR Ettus USRP E310 56MHz Bandwidth USB 3.0 Interface

Brand Name: Luowave
Model Number: LUOWAVE SDR-LW 2975
MOQ: 1 Piece
Price: USD
Delivery Time: Spot Goods or 30 Days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Packaging Details:
Paper Box\Paper Carton
Supply Ability:
1 Piece
Highlight:

high precision Embedded SDR

,

High Precision usrp e310

,

USB 3.0 Embedded SDR

Product Description

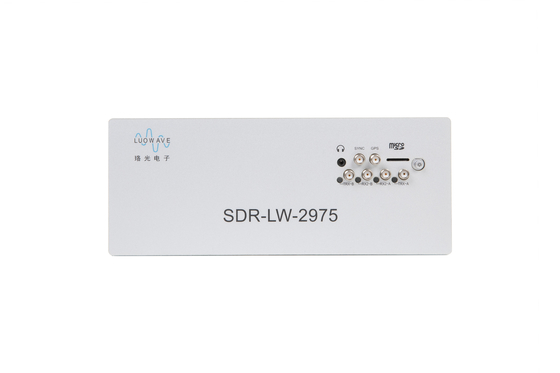

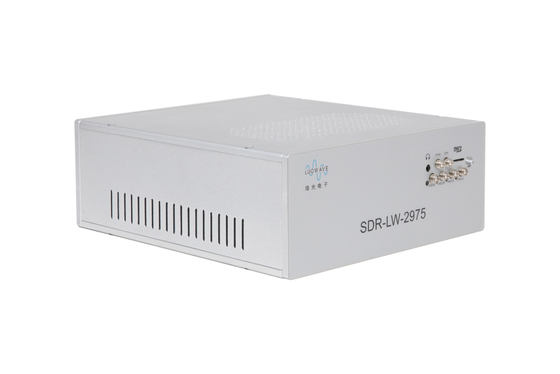

LUOWAVE SDR-LW 2975,All-in-one machine of usrp E310
Product Introduction

SDR-LW 2975 is a High performance embedded SDR stand-alone device, it consist of a onboard processor, FPGA and RF Front-end. The product has built-in Intel i7 processor, 500GB SSD, 16GB memory. The RF Front-end adopts AD9361 RF set processing device, 2x2 MIMO supported, operating frequency band range from 70MHz to 6GHz, maximum bandwidth is 56MHz. The baseband processing is conduct on the Linux OS which is running on the reconfigurable Zynq 7020 IC together with the Xilinx 7 series FPGA and integrated dual-core ARM A9 processor. Just like the other USRP devices, the open source software framework provide the ability of cross-platform support and USRP hardware drive(HUD). HUD support the majority of applications and SDR framework, such as GNU Radio.

Main Featuren

i7 processor, with Linux Real-Time O

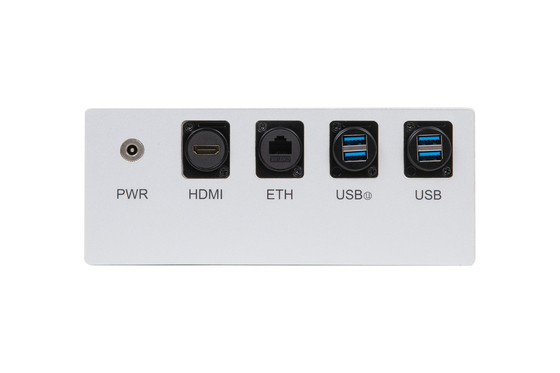

HDMI interface



500GB SSD, 16GB memory



2 of USB 3.0 interface



Operating frequency range from 70Mhz to 6GHz





Up to 56M instant bandwidth per channel



Build-in zynq 7020 FPGA



2TRX supported



External clock reference and PPS supported



RFNoC FPGA development framework



GNU Radio supported



RF Index



Transmit



Receive


channel 2 channel 2
Frequency 70MHz-6GHz Frequency 70MHz-6GHz
Frequency Step less than 1KHz Frequency Step less than 1KHz
Maximum Power ≥10dBm Maximum Power -15 dBm
Range of Gain 31.5dB Range of Gain 0 -37.5 dB
Gain Step 0.5dB Gain Step 0.5dB



Maximum

Instant Bandwidth

 56MHz



Maximum

Instant Bandwidth

 56MHz
    Noise Figure 8dB
