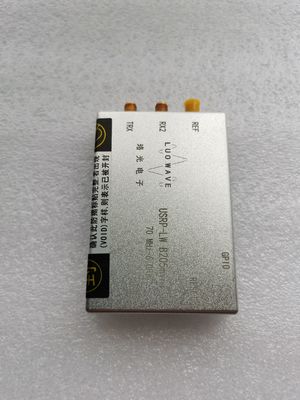

USRP-LW B205 | SDR USB Transceiver Industriallevel USB Radio Transceiver B205mini

Name: USRP-LW B205 | SDR USB Transceiver Industriallevel USB Radio Transceiver B205mini
Brand: Wuhan Tabebuia Technology Co., Ltd.
SKU: B205mini
Price: 488.00 USD
Availability: InStock

Brand Name:	Luowave
Model Number:	B205mini
MOQ:	1 Piece
Price:	USD
Delivery Time:	Spot Goods or 30 Days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

Paper Box\Paper Carton

Supply Ability:

1 Piece

Highlight:

SDR USB transceiver B205mini

usb radio transceiver 56MHz

sdr usb transceiver 56MHz

Product Description

USRP-LW B205mini is one 6.1×9.7×1.5cm Small size industriallevel softwareRadio equipment.

USB interface series USRP-LW B205mini

The device features an industrial-grade programmable Xilinx Spartan-6 XC6SLX150 FPGA with ADI's AD9364 RF integrated circuit on the transmit front end, which supports 70MHz to 6GHz With an RF range and an instantaneous bandwidth of 56MHz, it is a cost-effective transceiver.

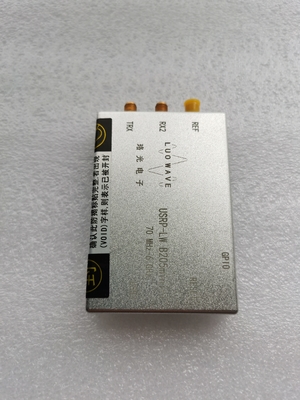

USRP-LW B205 | SDR USB Transceiver Industriallevel USB Radio Transceiver B205mini 0

The USRP-LW B205mini also supports some connectors, such as GPIO, JTAG connector, supporting PPS trigger synchronization or 10MHz reference clock synchronization. The USRP Hardware Driver (UHD) enables users to efficiently develop applications and then transition to designing high-performance USRP-LW X-Series or embedded USRP-LW E-Series devices.

The USRP-LW B205mini device kit includes: one USRP-LW B205mini and one USB 3.0 cable.

• Compact size and highly integrated The RF range covers 70 MHz–6 GHz	• Maximum supported real-time bandwidth of 56MHz Reference sample rate of 61.44 MS/s
• Programmable Spartan 6 XC6SLX150 FPGA	• Open source UHD supports multiple frameworks
• Support for the GNU Radio open source software framework	• Requires UHD 3.9.2 or newer driver version support
• Supports high-speed USB 3.0 connections	• GPIO common interface and JTAG debugging capabilities
• Supports 10 MHz reference clock or PPS synchronization

Main features:

USRP-LW B205mini Technical data:

Parameter category	numeric value	unit	Parameter category	numeric value	unit
Input/Output			Local vibration accuracy	±2.0	ppm
DC voltage input	5	V	RF performance parameters
Convert module parameters			Enter a third-order intercept point	-21	dBm
ADC sampling rate (max	61.44	MS/s	Output power	>9	dBm
ADC resolution	12	bits	Noise figure	<8	dB
DAC sampling rate	61.44	MS/s	Physical characteristics
DAC resolution	12	bits	size	6.1×9.7×1.5	cm
With host maximum rate (16b).	61.44	MS/s	weight	115.0	g
