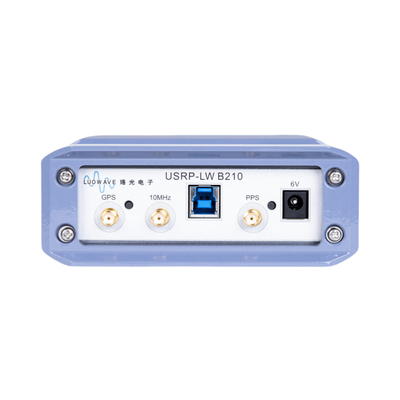

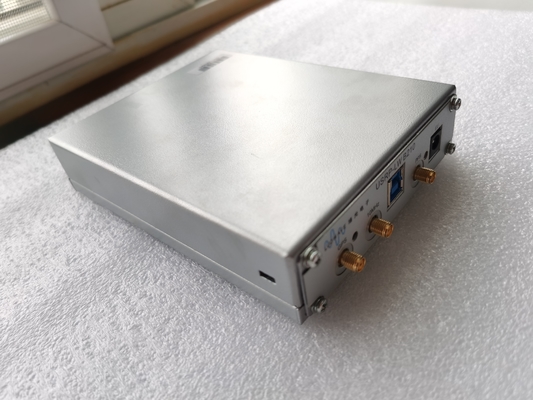

USRP-LW B210 | TV Broadcast And Cellular USB SDR Transceiver USRP 2901 B210 SDR USB 3.0

Name: USRP-LW B210 | TV Broadcast And Cellular USB SDR Transceiver USRP 2901 B210 SDR USB 3.0
Brand: Wuhan Tabebuia Technology Co., Ltd.
SKU: USRP-LW B210
Price: 488.00 USD
Availability: InStock

Brand Name:	Luowave
Model Number:	USRP-LW B210
MOQ:	1 Piece
Price:	USD
Delivery Time:	Spot Goods or 30 Days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Packaging Details:

Paper Box\Paper Carton

Supply Ability:

1 Piece

Highlight:

usrp b210 sdr USB 3.0

USB 3.0 SDR USB transceiver

TV broadcast usrp 2901

Product Description

Software Defined Radio,USRP-LW 2901, Compatible with ETTUS USRP B210

Product Overview

The USRP-LW 2901 provides a single-board, Universal Software Radio Peripheral platform and the frequency coverage is from 70 MHz – 6 GHz. It combines the AD9361 RFIC direct-conversion transceiver providing up to 56MHz of real-time bandwidth, Spartan6 FPGA, and fast SuperSpeed USB 3.0 connectivity with convenient bus-power

Main Features

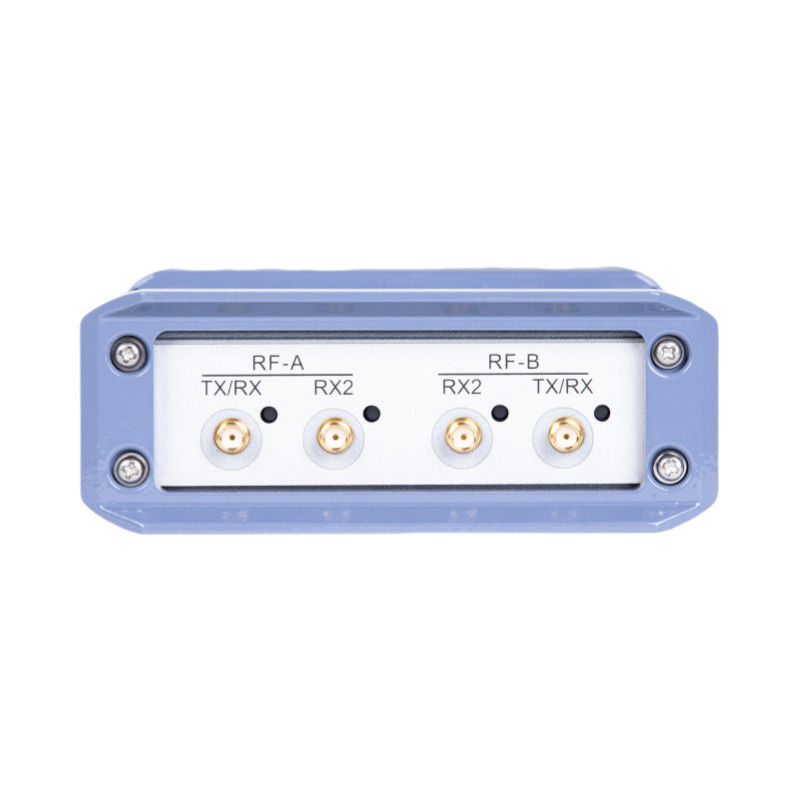

Highly integrated, two transceivers with RF range from 70 MHz to 6 GHz
Support for high speed USB 3.0 connectivity
Open source UHD supports multiple frameworks
User-programmable Spartan 6 XC6SLX150FPGA, a fully integrated mixed-signal baseband direct conversion transceiver that provides bandwidth up to 56MHz

Technical Parameters

Parameter category	numeric value	unit	Parameter category	numeric value		unit
Input/Output			GPS lockSO accuracy	<1		ppb
DC voltage input	6	V	Single-channel RF performance parameters
Convert module parameters			Single-sideband signal/image rejection	-0.7	dBc
ADC sampling rate (max	61.44	MS/s	3.5GHz	1	degRMS
ADC resolution	12	bits	6GHz	1.5	degRMS
ADC SFDR	78	dBc	Output power	>10	dBm
DAC sampling rate	61.44	MS/s	Enter a third-order intercept point	-20	dBm
DAC resolution	12	bits	Noise figure	<8	dB
With host maximum rate (16b).	61.44	MS/s	Physical properties
Local vibration accuracy	±2.0	ppm	size	17510017		mm
The GPS does not lock TCXO accuracy	±75	ppb	weight	0.695		kg

Low cost software radio

Experiment with the USRP-LW 2901 across a wide range of applications including: FM and TV broadcast, cellular, GPS, WiFi, ISM, and more. Users can immediately begin prototyping in GNURadio and participate in the open-source SDR community. Full support by the UHD software allows seamless code reuse from existing designs, compatibility with open-source applications like HDSDR and OpenBTS, and an upgrade path to industry-ready USRP systems to meet application requirements. Here are some examples of what you can do with a USRP B210.

Included in This Equipment

1.USRP-LW 2901

2. USB 3.0 cable

3. Power Supply

Please do not hesitate to contact me if you need any further information.

Whatsapp/skype/Wechat: +8618062514745 Web:https://www.luowave.com/en/
