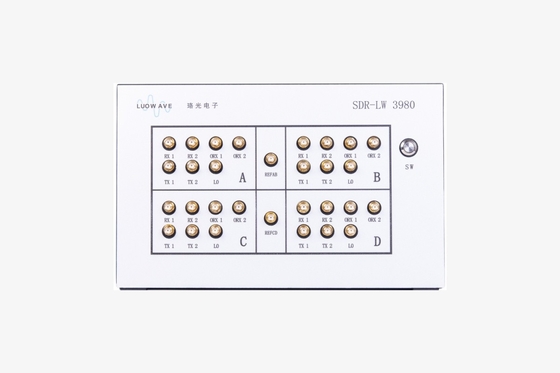

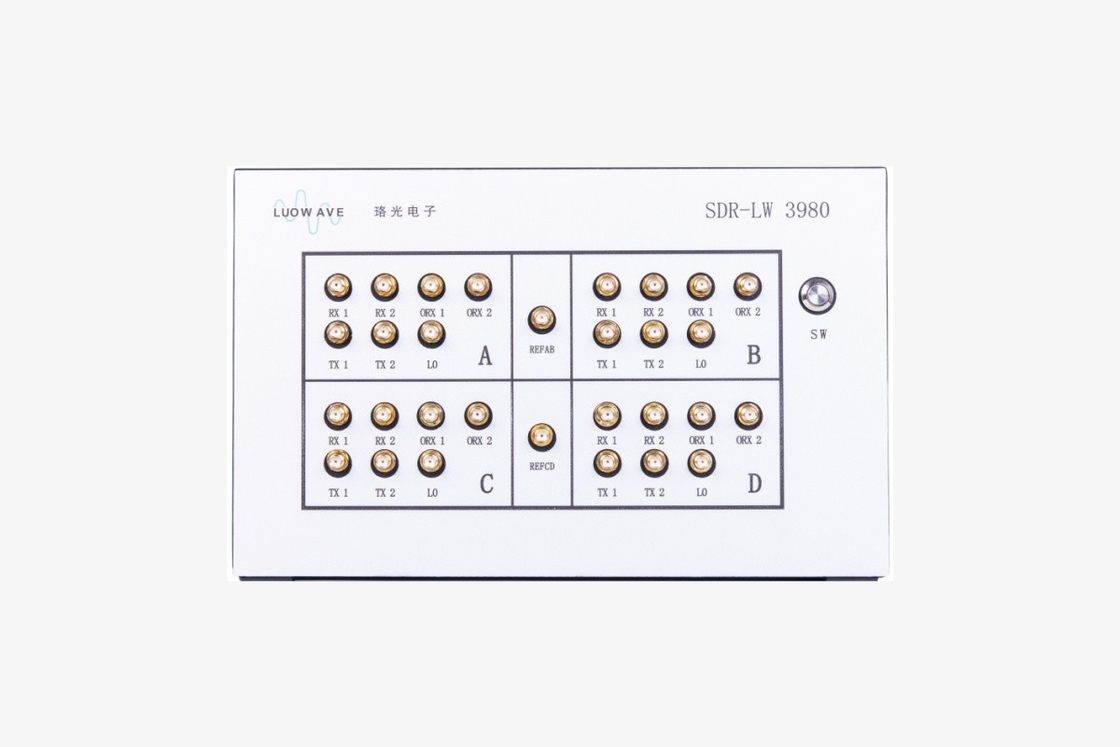

Standalone Software Defined Radio SDR-LW 3980
The SDR-LW 3980 is the latest 8-channel high-performance SDR (software defined radio) standalone device launched by Wuhan Luoguang Electronics Co., Ltd. Consists of an on-board processor, an FPGA, and an RF front end. The product has a built-in Intel i9 processor, 512GB SSD, 64GB of RAM. Frequency coverage is from 75 MHz to 6 GHz, with a single channel bandwidth of up to 200 MHz. The FPGA features the resource-rich, user-programmable Xilinx MPSOC ZU11EG. Like all SDR devices, the device has built-in Ubuntu, GNU Radio, etc.
Zynq® UltraScale+ ™ MPSoC devices provide 64-bit processor scalability while combining real-time control with a hardware and software engine for graphics, video, waveform, and packet processing. Based on a general-purpose real-time processor and platform with programmable logic, quad applications processors and GPU (EG) devices, the possibilities for applications such as 5G wireless, next-generation ADAS and the Industrial Internet of Things.
The ADRV9009 is a highly integrated radio frequency (RF), agile transceiver that provides dual transmitters and receivers, integrated frequency synthesizers, and digital signal processing. The IC offers a diverse combination of high performance and low power consumption to meet the requirements of 3G, 4G, and 5G macro cellular time division duplex (TDD) base station applications.
The SDR-LW 3980 is ideal for building a range of advanced research applications, including standalone 5G or 802.11 device emulation, development of media access control (MAC) algorithms, multiple-input multiple-output (MIMO) systems, heterogeneous networks, and heterogeneous networks 5G transmission, RF anti-compression sampling, spectral remote sensing, cognitive radio, beamforming and direction finding.
Processing unit:
| processor | Intel I9-9900K |
| memory | DDR4 64GB |
| SFP+ | 10Gbps |
| SSD | 500GB |
| PCIe | Gen3 x8 |
FPGA unit:
| Main chip | Xilinx Zynq UltraScale+ ZU11EG |
| PS | Quad-core ARM® Cortex-A53 |
| Dual-core Cortex-R5 real-time processors | |
| Mali-400 MP2 graphics processing | |
| PL | 653k System Logic Cells |
| Memory | PS 4 GByte DDR4(x64) (with ECC) |
| PL 2 GByte DDR4(x32) |
RF Unit:
| Main chip | ADRV-9009 x4 |
| Frequency range | 75-6000MHz |
| Number of transmit channels | 8 |
| The number of receive channels | 8 |
| Observe the number of receive channels | 8 |
| Receive the maximum bandwidth | 200MHz |
| Transmit maximum bandwidth | 450MHz |
| Observe the maximum bandwidth received | 450MHz |
| RX ADC bits | 16bits |
| TX DAC digits | 14bits |
| Multi-slice phase synchronization | backing |
