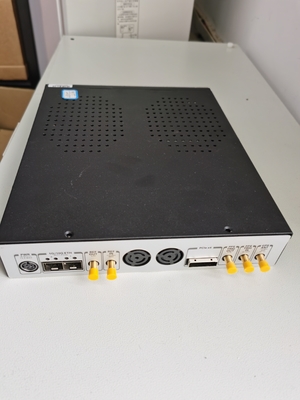

40MHz Embedded SDR 2940 USRP 1GB DDR3 PCIE 1/ 10 Gigabit Port

40MHz Embedded SDR 2940 USRP 1GB DDR3 PCIE  1/ 10 Gigabit Port
40MHz Embedded SDR 2940 USRP 1GB DDR3 PCIE  1/ 10 Gigabit Port

Large Image :  40MHz Embedded SDR 2940 USRP 1GB DDR3 PCIE 1/ 10 Gigabit Port

Product Details:
Place of Origin: China
Brand Name: Luowave
Model Number: USRP-LW 2940
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD
Packaging Details: Paper Box\Paper Carton
Delivery Time: Spot Goods or 30 Days
Payment Terms: T/T
Supply Ability: 1 Piece

40MHz Embedded SDR 2940 USRP 1GB DDR3 PCIE 1/ 10 Gigabit Port

Bandwidth: 40 Mhz Frequency Range: 50 MHz To 2.2 GHz
FPGA: The XC7K410T Daughterboards: WBX-LW 40MHz
Data Storage: 1GB DDR3 Interface: 1/10 Gigabit Port, PCIE
High Light:

40MHz Embedded SDR PCIE


2940 Embedded SDR



Software Defined Radio,USRP-LW 2940, 40MHz


The USRP-LW 2940 is a high-performance, scalable software-defined radio (SDR) platform for designing and deploying next-generation wireless communication systems. It consists of one USRP-LW X310 and two WBX-LW 40MHz RF daughter boards


The USRP-LW 2940 hardware architecture combines two expanded bandwidth daughter board slots with a bandwidth of up to 40M from 50 MHz to 2.2 GHz. And it features multiple high-speed interfaces to choose from (PCIe, Gigabit/10 Gigabit Ethernet ports), as well as a resource-rich, user-programmable Kintex-7 FPGA. In addition, the USRP-LW 2940 uses an open source cross-platform UHD driver, with a large number of development frameworks, compatible reference architectures, and open source projects.


As the digital processing core of the USRP-LW 2940 the XC7K410T FPGA provides high-speed connectivity between all major components. Includes RF front end, host interface, and DDR3 memory. The default FPGA provides all UHDs for controlling digital downconversion and digital upconversion, fine frequency tuning, and some other DSP function blocks. Users can take advantage of the spare space of the resource-rich Kintex-7 FPGA, plus the RFNoC development framework supported by USRP, to develop and implement their own DSP processing modules.

The USRP-LW 2940 Equipment Kit includes: one USRP-LW 2940 main unit, Gigabit cable, SFP+ Gigabit adapter, power adapter, USB2.0 JTAG cable, SMA connector RF cable 4 root.


Performance comparison table of FPGA of the Ethernet Port Series and X Series

FPGA Spartan3XC3SD3400A Kintex 7 -410T
Logic Cells 53k 406k
Memory 2,268 Kb 28,620 Kb
Multilliers 126 1540
Clock Rate 100 MHz 200 MHz


per Channel(16-bit)

25 MS/s 200 MS/s



TheUSRP-LW 2940 offers a variety of high-speed interfaces to choose from. On the panel of the device, the Gigabit Ethernet port is one of the simplest and most commonly used ways to connect. For applications with extended bandwidth and low latency, such as PHY/MAC studies, the X310 provides an efficient bus interface PCIe x4 for this deterministic operation. When the application uses network recording or multi-node processing, 10 Gigabit port is the best choice.


The USRP-LW 2940 includes many additional features that will help some other wireless applications. For example, in FPGA design, the 1GB DDR3 on the motherboard can be used as data buffering and data storage. The optional internal GPSDO provides high-precision frequency reference when synchronized to the GPS system with a synchronization delay of less than 50ns. Allows the user to control external components such as amplifiers and switches through the GPIO interface, support inputs such as event triggers, and observe debug signals. The USRP-LW 2940 also includes an internal JTAG adapter that allows developers to easily load and debug new FPGA images.
