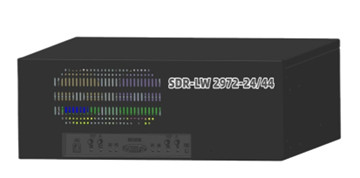

Independent Software Radio Equipment SDR-LW 2972-24/44

SDR-LW 2972-24/44 is the latest product developed by Wuhan Luowave SDR based on the classic radio equipment SDR-LW 2972. The transmit and receive frequency are uplifted to 24GHz/44 GHz, while inheriting all the functions and advantages of the Original 2972.

• 70MHz-24GHz/44GHz frequency coverage
• i7 processor with Linux RTOS
• 500GB SSD , 16GB RAM
• Built-in Spartan6 XC6SLX150 FPGA
• USRP Software Defined Software Radio
• Pre-installed all-in-one software
• Optional All-in-One Paid Software
• List of related applications

Product introduction

SDR-LW 2972-24/44 adopts the design that the RF front end is integrated in the AD9361. The AD9361 can directly supports the up and down conversion of the frequency on the RF end, and can provide a bandwidth of 56MHz in real time. And the AD9361's two-way signal link is used to provide coherent MIMO capability. The host computer is able to perform signal processing and controlling on the AD9361 by implementing a series of operations on the FPGA of the model Spartan6 XC6SLX150 through USB 3.0 port. The SDR-LW 2972-24/44 provides a maximum throughput of 61.44MS /s. The device uses an open source cross-platform UHD driver, and UHD supports most applications and SDR frameworks, such as GNU Radio, Matlab, and Lab View.

Typical application scenarios

The new Luowave millimeter wave series products can support: 5G FR2 application; Vector signal generation and analysis; Satellite communication applications; Channel measurement applications; Communication awareness integrated application.

5G FR2 applications:

• frequency can cover 40GHz which is commonly used in 5G FR2
• Software-defined radio is reconfigurable
• Dual-Channel Transceiver can Simulates Simple MIMO Scenarios
• All hardware and software parameters are configurable, ideal for prototyping

Vector signal generation and analysis:

• Custom vector modulation signals Generation
• Can analyze the quality of the transmitted signal of various transmitters
• Low cost of ownership, one set of transmitter and receiver testing are intergrated in one set of equipment

Satellite communication applications :

• Frequency band coverage: C/KU/KA
• China GW satellite constellation: 37.5-42.5GHz , can support 47.2GHz-51.4GHz in the future
• Support prototype terminal verification
• Reconfigurable FPGA can provide satellite transponder function simulation, as well as channel scenario simulation

Channel measurement application :

• Transmit and receive devices can be synchronized through GPSDO
• Flexible generation of test sequences for channel estimation
• Transceiver integrated structure can realize bidirectional channel estimation
• The IQ data from the receiver is compatible with mathematical tools such as Matlab /Python

Integrated application of communication perception :

• vehicle perception, personnel perception
• Software Radio Based OFDM Radar / Multitone Radar
• USRP transceiver channel synchronization, enabling radar transceiver function
• Indoor sensor intrusion detection function verification

Main Feature

Industrial computer

FPGA and Baseband

As the digital processing core of the SDR-LW 2972 - 24/44,the Spartan 6 XC6SLX150 provides direct high-speed connectivity to all major components, including the RF front end, host interface and DDR3 memory. The default FPGA provides all UHD's for digital down-conversion and digital up-conversion, fine frequency tuning and some other DSP functional blocks. Users can develop and implement their own DSP processing modules by using the abundant FPGA spare space and the development framework supported by USRP.

RF index

power

surroundings

Accessories

SDR-LW 2972-24/44 accessories include one power cord, one adapter, four omnidirectional antennas, one HDMI cable, one set of standard keyboard and mouse , and one monitor (choose either LCD monitor or tablet).

Free pre-installed software

Optional paid software

LUOWAVE App Store:

"LUOWAVE App Store" is the application software platform of LUOWAVE . There are a large number of application software developed by Luowave itself and third parties on the platform, including wireless communication, radar and detection, wireless test and measurement, remote sensing and navigation, teaching platform and other fields. All the application software on the platform is developed based on the Luowave software radio platform, and, we will perform strictly testing procedure and quality control to assure the software is stable and reliable at the same time. The Luowave appstore will be continuously updated that the software on which are the newest and the most optimized one.

The majority of software radio users can search and discover the applications they need on this platform, eliminating the time and effort required to develop their own software. We welcome App any developers who would like to provide their own application software to this platform. And We will help them taking full advantage of our new hardware technology in the software developing phase.

APP Store application interface
