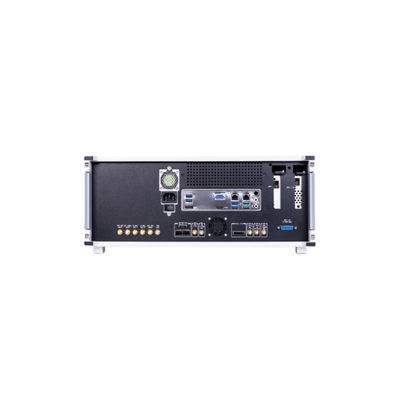

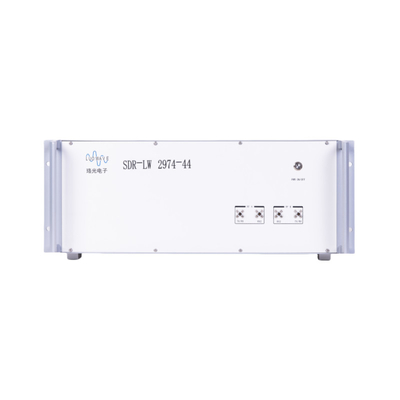

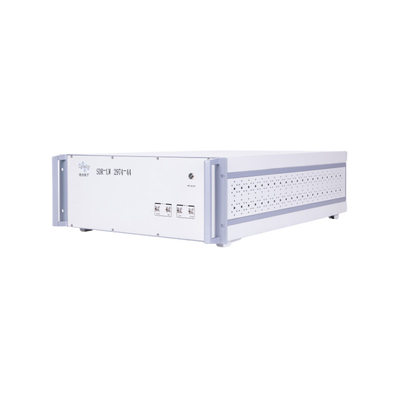

SDR-LW 2974-44 RF 10 MHz-44 GHz 160 MHz BW Each 2 Channels 4 × USB 3.0 2 × SFP+ 4 × PCIE BUS i7 Processor USRP Integrated Software Defined Radio Device

Name: SDR-LW 2974-44 RF 10 MHz-44 GHz 160 MHz BW Each 2 Channels 4 × USB 3.0 2 × SFP+ 4 × PCIE BUS i7 Processor USRP Integrated Software Defined Radio Device
Brand: Wuhan Tabebuia Technology Co., Ltd.
SKU: SDR-LW 2974-44
Price: 291.00 USD
Availability: InStock

Brand Name:	Luowave
Model Number:	SDR-LW 2974-44
Price:	$82,500.00

Detail Information

Product Description

Detail Information

Place of Origin:

China

Frequency Range:

10 MHz-44 GHz

Bandwidth:

160 MHz Each

Channel:

2T2R

CPU:

Intel Core I7 9700

Connector:

USB3.0, Gigabit, 10-gigabit Network Port, PCIe, Gen 2 X4

FPGA:

Xilinx Kintex-7 XC7K410T

Weight:

20.4Kg

Size:

72.8*48.2*17.7 CM

Highlight:

2 × SFP+ SDR-LW 2974-44

2 Channels SDR-LW 2974-44

Product Description

Overview

SDR-LW 2974-44 is a product developed by LUOWAVE based on the classic radio equipment SDR-LW 2974. The transmission and reception frequency of SDR-LW 2974-44 is increased to 24GHz. At the same time, it inherits all the functions and advantages of the predecessor. The SDR-LW 2974-24 is a high-performance embedded Software-Defined Radio (SDR) platform, ideally suited for prototyping a wide range of advanced research applications. These applications include the simulation of stand-alone LTE and 802.11 devices, development of Media Access Control (MAC) algorithms, implementation of multiple-input, multiple-output (MIMO) systems, design of heterogeneous networks, LTE transmission, RF compression sampling, spectral remote sensing, cognitive radio systems, beamforming, and direction finding.

Features

i7 processor
Linux real-time operating system
4 USB 3.0 ports
JTAG interface
PCIe Gen x4 interface
Dual SFP+ interfaces
500GB SSD, 16GB RAM
10MHz-44GHz frequency coverage
Built-in Xilinx Kintex-7 FPGA
Support external reference clock and PPS signal reference
Support 2 transmit 2 receive, up to 160 MHz instantaneous bandwidth per channel

Supported Development Tools

GNU Radio
Matlab
Labview

Specifications

Transmit		Receive
Number of Channels	2	Number of Channels	2
Frequency Range	10MHz-44GHz	Frequency Range	10MHz-44GHz
Frequency Stepping	＜1KHz	Frequency Stepping	＜1KHz
Maximum Output Power	19.5dBm	Maximum Input Power	-15dBm
Gain Range	0-31.5dB	Gain Range	0-31.5dB
Gain Stepping	0.5dB	Gain Stepping	0.5dB
Maximum Real-time Bandwidth	160MHz	Maximum Real-time Bandwidth	160MHz
FPGA and Baseband		Industrial Computer
FPGA	Kintex-7 XC7K410T	Processor	I7 9700
DRAM	1G	Memory	16G
ADC Resolution	14 bits	SFP (10 Gigabit Network Card)	10Gbps
DAC Resolution	16 bits	PCIe card	PCIe Gen 2 x4
ADC Sampling Rate	200 MSps	RJ45	1Gbps
Environment		Power
Operating Temperature	0-50℃	Voltage	220V
Humidity	10%-90% (non-condensing)	Current	3A Max
Physical Properties
Size (SDR-LW 2974-24)		72.848.217.7 CM
Weight		20.4Kg

Integrated SDR Comparison

P/N	Frequency Range	CPU	Max.Bandwidth	Channel	ADC/DAC	FPGA	Connector	Size(mm)
SDR-LW 2972	70MHz-6GHz	Intel Core i7 8700	56MHz	2T2R	AD9361 ADCs:12-bit 61.44 MS/s DACs:12-bit 61.44MS/s	Xilinx Artix-7 XC7A 200T	USB3.0,RJ45	23530085
SDR-LW 2974	10MHz-6GHz	Intel Core i7 9700	160MHz	2T2R	ADCs:ADS62P48 14-bit,configurable sampling rate:184.32,200 MS/s DACs:AD9146 16位,800 MS/s	Xilinx Kintex-7 XC7K410T	USB3.0,Gigabit, 10-gigabit network port,PCIe, Gen 2 x4	235265135
SDR-LW 2974 Note	10MHz-6GHz	Intel Core i7 9700	160MHz	2T2R		Xilinx Kintex-7 XC7K410T	USB3.0,Gigabit, 10-gigabit network port,PCIe, Gen 2 x4	430300135
SDR-LW 2975	70MHz-6GHz	Intel Core i7 8700	56MHz	2T2R	AD9361 ADCs:12-bit 61.44 MS/s DACs:12-bit 61.44MS/s	Xilinx Zynq-7020	USB3.0,RJ45,PCIe,Genx4,HDMI	21023585
SDR-LW 3980	75MHz-6GHz	Intel Core i9-9900K	Tx:450MHz RX:200MHz	8T8R	ADRV9009 ADCs:16-bit Max. sampling rate 245.76MS/s DACs:14-bit Max. sampling rate 491.52MS/s	Xilinx Zynq UltraScale+ ZU11EG	USB3, USB2, PCIe 3.0 x8, Gigabit, 10-gigabit network port	280410175
SDR-LW 4940	1MHz-7.2GHz	Intel Core I9-9900K	400MHz	4T4R	ADCs:12-bit DACs:14-bit	Xilinx Zynq Ultrascale+ ZU28DR RFSoc	1 × QSFP+, 2× RJ45, USB 3.0	430378145
