Luowave X440 PRO 30 MHz – 4 GHz RF SDR 1.6 GHz bandwidth/ch 8 Channel Xilinx RFSoC XCZU48DR FPGA Phase-Coherent < 1° RMS USRP Software Defined Radio Device

Name: Luowave X440 PRO 30 MHz – 4 GHz RF SDR 1.6 GHz bandwidth/ch 8 Channel Xilinx RFSoC XCZU48DR FPGA Phase-Coherent < 1° RMS USRP Software Defined Radio Device
Brand: Wuhan Tabebuia Technology Co., Ltd.
SKU: Luowave X440 PRO
Price: 13.00 USD
Availability: InStock

Brand Name:	Luowave
Model Number:	Luowave X440 PRO
MOQ:	1
Price:	$26,000.00

Detail Information

Product Description

Detail Information

Place of Origin:

China

Channel:

8 TX/RX Channel

Frequency Range:

30 MHz – 4 GHz Frequency Range

Bandwidth:

Bandwidth Up To 1.6 GHz/channel

FPGA:

Xilinx Zynq UltraScale+ ZU48DR RFSoC

Phase Synchronization:

Phase Stability (within Device): < 1° ，RMS Phase Stability (device-to-device): < 2° RMS

Connector:

Dual 100 GEth Via QSFP28

Function:

Open Source (GNU Radio, RFNoC, UHD)

Highlight:

8 Channel RF SDR

Xilinx RFSoC XCZU48DR FPGA SDR

Product Description

Luowave X440 PRO | 30 MHz – 4 GHz RF SDR, 1.6 GHz bandwidth/ch, 8 Channel, Xilinx RFSoC XCZU48DR FPGA, Phase-Coherent < 1° RMS, USRP Software Defined Radio Device

The Luowave X440 PRO is an advanced SDR platform from Wuhan Luoguang Electronics that upgrades to a Xilinx XCZU48DR FPGA chip while maintaining direct RF-sampling capabilities, delivering enhanced processing power with 8 transmit and 8 receive channels covering 30MHz to 4GHz frequency range. This high-performance system achieves 1.6GHz maximum bandwidth in single/dual-channel mode and maintains 400MHz per channel in 8-channel operation, supported by 14-bit ADC/DAC converters with 5 GSps sampling rates. Featuring outstanding phase coherence, it guarantees better than 1° RMS phase stability within a unit and under 2° RMS between multiple units, making it perfect for developing and testing 5G/6G massive MIMO systems, advanced beamforming, precision direction finding, phased array radars, and electronic warfare applications, providing complete support from research validation to actual deployment.

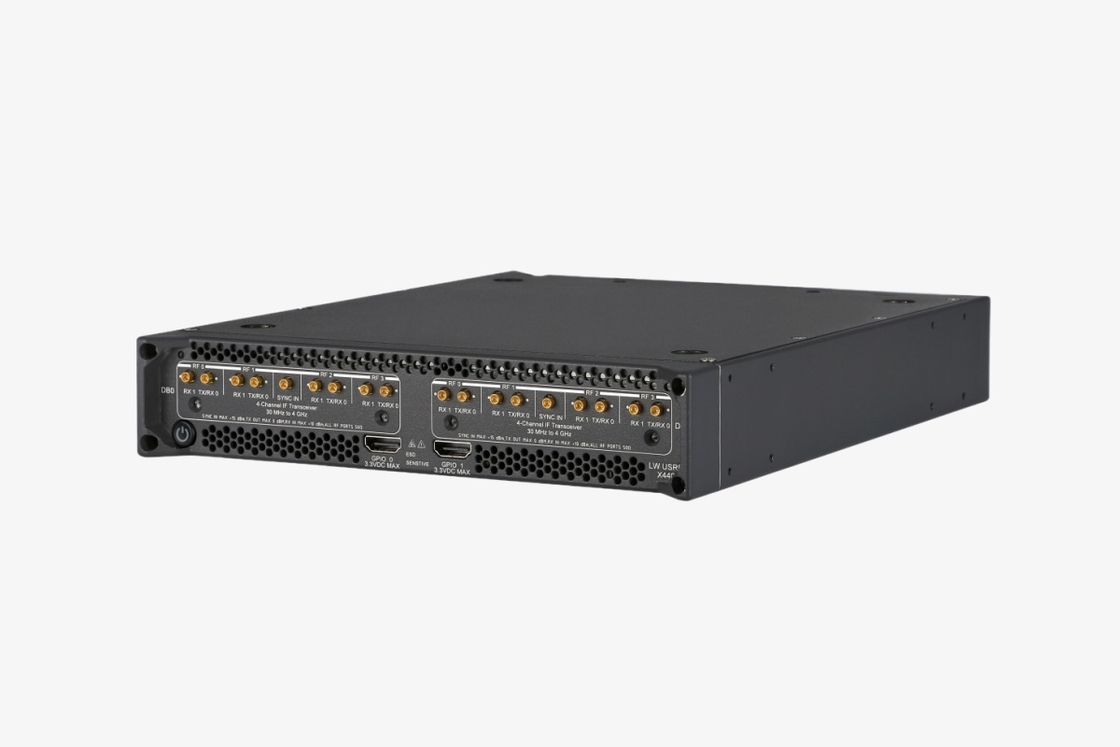

Luowave X440 PRO 30 MHz – 4 GHz RF SDR 1.6 GHz bandwidth/ch 8 Channel Xilinx RFSoC XCZU48DR FPGA Phase-Coherent < 1° RMS USRP Software Defined Radio Device 0

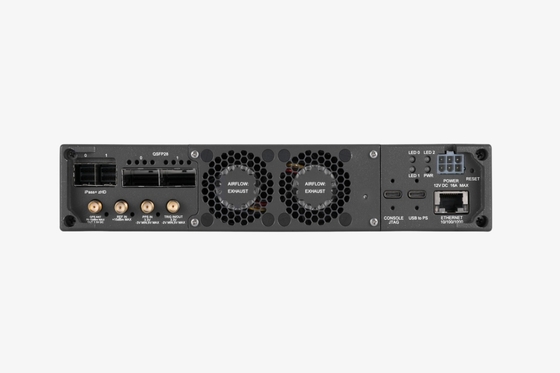

Luowave X440 PRO 30 MHz – 4 GHz RF SDR 1.6 GHz bandwidth/ch 8 Channel Xilinx RFSoC XCZU48DR FPGA Phase-Coherent < 1° RMS USRP Software Defined Radio Device 1
