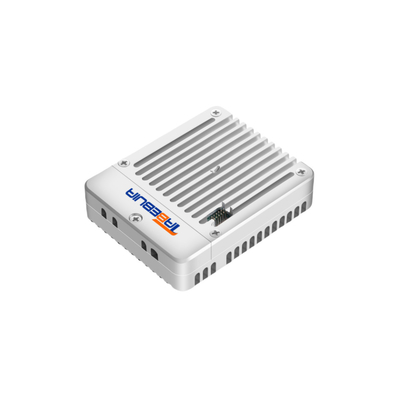

Drone Detection Module |＜2kM Detection Range, ＜1S Rapid Detection, ≥ 10 Drones Simultaneously Detecting Number

Name: Drone Detection Module |＜2kM Detection Range, ＜1S Rapid Detection, ≥ 10 Drones Simultaneously Detecting Number
Brand: Wuhan Tabebuia Technology Co., Ltd.
SKU: Drone Detection Module
Price: 450.00 USD
Availability: InStock

Brand Name:	Tabebuia
Model Number:	Drone Detection Module
Price:	$1,899.00

Detail Information

Product Description

Detail Information

Place of Origin:

China

Detection Frequency Band:

1.1GHz~1.4GHz、2.4GHz、5.2GHz、5.8GHz

Detect The Number Of Drones:

≥10 Flights

Detection Range:

2km

Working Temperature:

-25℃~55℃

Weight:

200g

Size:

65*51*10.8mm(with A Case)

Highlight:

1S Rapid Detection Module

10 Drones Simultaneously Detecting Module

2kM Detection Range Module

Product Description

Overview

The drone detection and positioning module integrates two primary detection capabilities: signal feature recognition and protocol analysis. This enables the provision of precise location information for DJI drones and their operators. Additionally, it can identify spectral characteristics of drones from other manufacturers.

Features

Support for mainstream brands such as DJI and Dronex, as well as DIY drones for detective identification
Compact as a business card;
Detect mainstream drones and off-road vehicles;
Offer long-range and fast detection;
Output formatted data via TTL serial port with IPEX RF interface;
Support easy development through the serial port;
Supports remote upgrade;
5V power supply, 3.5W power consumption.

Specifications

Detection model	Recognize mainstream brands of drones such as DJI and Datootong, as well as DIY cross-country drones.
Detection frequency band	1.1GHz~1.4GHz,2.4GHz,5.2GHz,5.8GHz
Rapid detection	The drone model and working frequency can be quickly identified within 1S
Detect the number of drones at the same time	≥10 flights
Detection range	2km	Working temperature	-25℃~55℃
Weight	200g	Size	655110.8mm(with a case)

Who are we

China Leading Software Radio Equipment and Solutions Provider Since 2012, Hot-selling products includes:

USRP-LW modular SDR, RF daughterboards
SDR-LW integrated SDR
COUNTER-UAV Series Products

Drone Detection Module |＜2kM Detection Range, ＜1S Rapid Detection, ≥ 10 Drones Simultaneously Detecting Number 0

Why us

Drone Detection Module |＜2kM Detection Range, ＜1S Rapid Detection, ≥ 10 Drones Simultaneously Detecting Number 1

Please do not hesitate to contact me if you need any further information.

Skype: 86--18062514745

E-mail: chen@luowave.com
