USRP Software Defined Radio with 70 MHz-6 GHz Frequency Range 56 MHz Bandwidth and 2T2R Channels

Name: USRP Software Defined Radio with 70 MHz-6 GHz Frequency Range 56 MHz Bandwidth and 2T2R Channels
Brand: Wuhan Tabebuia Technology Co., Ltd.
SKU: USRP-TB B210 (T210)
Price: 470.00 USD
Availability: InStock

Brand Name:	Tabebuia
Model Number:	USRP-TB B210 (T210)
Price:	$470.00

Detail Information

Product Description

Detail Information

Place of Origin:

China

Frequency Range:

70 MHz-6 GHz

Bandwidth:

56 MHz Each

Channel:

2T2R

Connector:

USB3.0

FPGA:

Artix™ 7 100G FPGA

Size:

175*100*17 Mm

Highlight:

Artix™ 7 100T FPGA USRP

Ettus USRP B210 Compatible

Product Description

Ettus USRP B210 Compatible Artix™ 7 100T FPGA AD9361 RF 70 MHz-6 GHz 56 MHz BW Each 2 Channels USRP Software Defined Radio Device

Overview

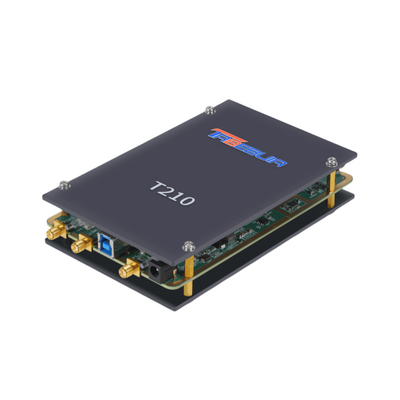

The T210 is a highly integrated, universal software-defined radio device that supports two-way transmission and reception. It covers an RF range from 70 MHz to 6 GHz and features a high-speed USB 3.0 connection. The device is compatible with multiple frameworks through the open-source USRP Hardware Driver (UHD) and is equipped with a programmable ARTIX-7 FPGA. It includes a fully integrated mixed-signal baseband direct-conversion transceiver, capable of delivering up to 56 MHz of real-time bandwidth.

Key Features

Support up to 56M real-time bandwidth with a 61.44MS/s sampling rate
High-performance XILINX ARTIX-7 100T/200T or Spartan-6 FPGA with customizable logic resources
High-performance bandwidth
Dual-channel phase-coherent transceiver
Support UHD, C/C++, and Python interfaces with rich community project support
External 10M or PPS input for high-precision GPSDO (customizable)
High-speed USB3.0 connection with USB or 6-12V independent power supply options
GPIO general interface and JTAG debugging capability

Specifications

USRP SDR Comparison

P/N	USRP-LW X310	USRP-LW N321	USRP-LW N310	USRP-LW N210	USRP-LW E310	USRP-LW B210	USRP-LW B205 (Module)	USRP-LW B205 (Board)
Frequency Range	DC-6GHz	3MHz-6GHz	10MHz-6GHz	DC-6GHz	70MHz-6GHz
RF Daughterboard	Support two Daughterboards	Built-in two Daughterboards (non-replaceable)	Built-in two Daughterboards (non-replaceable)	Support one Daughterboards	Unsupported
Max. Bandwidth	160MHz each	200MHz each	100MHz each	8-bit width: 80MHz each 16-bit width: 25MHz each	56MHz each
Channels NO.	2T2R	2T2R	4T4R	1T1R	2T2R	2T2R	1T1R	1T1R
ADC/DAC	ADCs: ADS62P48 14-bit, configurable sampling rate: 184.32, 200 MS/s DACs: AD9146 16-bit, maximum sampling rate of 800 MS/s	ADCs:AD9695B 14-bit, configurable sampling rates: 200, 245.76 and 250 MS/s DACs:DAC37J82 16-bit, configurable sampling rate: 200, 245.76 and 250 MS/s	AD9371 ADCs: 16-bit, configurable sampling rates: 122.88, 125, and 153.6 MS/s DACs: 14-bit, configurable sampling rates: 122.88, 125, and 153.6 MS/s	ADCs:ADS62P42 14-bit 100MS/s DACs:AD9777 16-bit 400MS/s	AD9361 ADCs:12-bit 61.44MS/s DACs:12-bit 61.44MS/s	AD9364 ADCs:12位61.44MS/s DACs:12位61.44MS/s
FPGA Model	Xilinx Kintex-7 XC7K410T	Xilinx Zynq-7100 SoC FPGA	Xilinx Zynq-7100 SoC FPGA	Xilinx Spartan XC3SD3400A	Xilinx Zynq 7020 SoC FPGA	Xilinx Spartan 6 XC6SLX150	Xilinx XC7AT200	Xilinx Artix 7
Data Interface	GigE Port, 10GbE Port, PCIE x4	GigE Port, 10GbE Port, QSFP(2*10G), A-USB, micro-US	GigE Port, 10GbE Port, A-USB,micro USB	Gigabit Ethernet Port	Ethernet Port, USB2.0	USB3.0
Size (mm)	29022545	38022045	42522045	22516562	1336826	17912748	1076520	104*57
Unit Price	9999	23999	17999	3699	5999	2199	2199	599
