Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Anti UAV System
Created with Pixso. Drone Location Module 5M Position Accuracy 2S Quick Position 3KM Detection Range

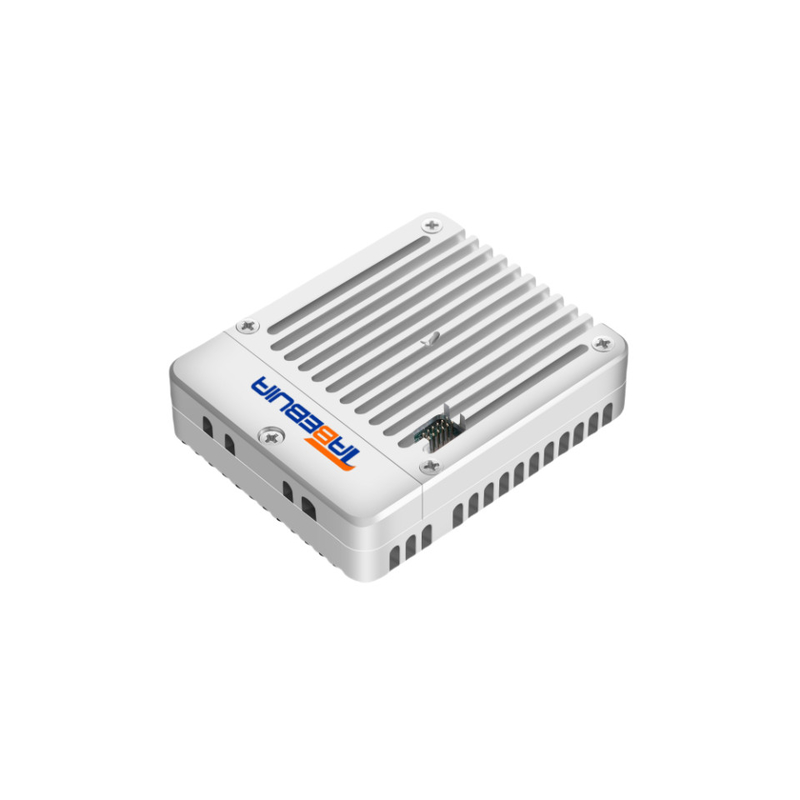

Drone Location Module 5M Position Accuracy 2S Quick Position 3KM Detection Range
  • Name

Drone Location Module 5M Position Accuracy 2S Quick Position 3KM Detection Range

Brand Name: Tabebuia
Model Number: Drone Location Module
Price: $2,639.00
Detail Information
Product Description
Detail Information
Place of Origin:
China
Quick Location:
Within 2S
Detect The Number Of Drones:
≥10 Flights
Detection Range:
3km
Working Temperature:
-25℃~55℃
Weight:
200g
Size:
65*51*10.8mm(with A Case)
Highlight:

5M Position Accuracy Drone Location Module

,

3KM Detection Range Drone Location Module

,

2S Quick Position Drone Location Module

Product Description

Overview

The drone detection and positioning module integrates two primary detection capabilities: signal feature recognition and protocol analysis. This enables the provision of precise location information for DJI drones and their operators. Additionally, it can identify spectral characteristics of drones from other manufacturers.

Features

  • Compact as a business card;
  • Support DJI drone detection and positioning with less than 5M accuracy;
  • Output formatted data via TTL serial port with IPEX RF interface;
  • Provide detailed information including drone model, serial number, latitude/longitude, altitude, airspeed, and pilot info;
  • Support remote upgrades;
  • 5V power supply, 3.5W power consumption.


Specifications



Positioning model DJI Mavic II,  AIR2S,  Mini3PRO,  AVATA and other O2/O3 protocol drones
Quick location Within 2S, drone information can be quickly analyzed.
Count the number of drones being positioned simultaneously ≥10 flights
Detection range 3km Working temperature -25℃~55℃
Weight 200g Size 65*51*10.8mm(with a case)


 Who are we

China Leading Software Radio Equipment and Solutions Provider Since 2012, Hot-selling products includes:

  • USRP-LW modular SDR, RF daughterboards
  • SDR-LW integrated SDR
  • COUNTER-UAV Series Products


Drone Location Module 5M Position Accuracy 2S Quick Position 3KM Detection Range 0





Why us

Drone Location Module 5M Position Accuracy 2S Quick Position 3KM Detection Range 1




Contact us

Please do not hesitate to contact me if you need any further information.

Skype: 86--18062514745
