Good price online

products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Anti UAV System
Created with Pixso. Compact Anti UAV Module with Multi-Drone Detection and DJI Protocol Support for Accurate UAV Tracking
Name
  • Name
  • Name

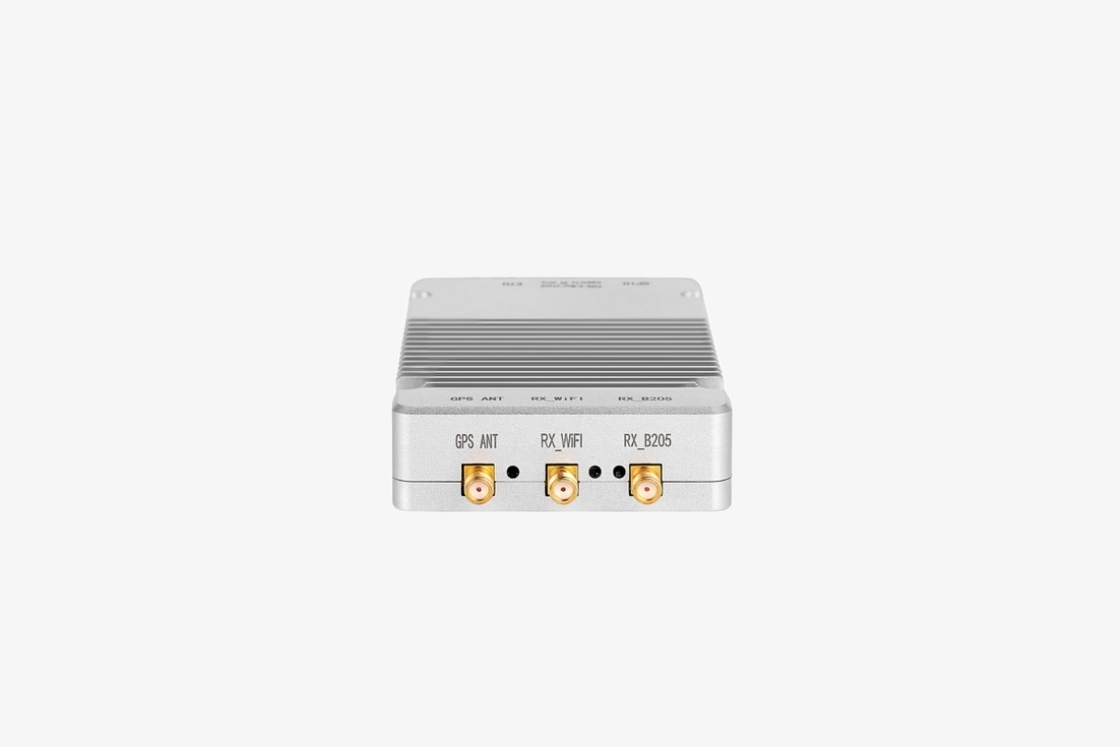

Compact Anti UAV Module with Multi-Drone Detection and DJI Protocol Support for Accurate UAV Tracking

Brand Name: Tabebuia
Model Number: Drone Detection and Location Module
Detail Information
Product Description
Detail Information
Place of Origin:
China
Positioning Model:
DJI Mavic II, AIR2S, Mini3PRO, AVATA And Other O2/O3 Protocol Drones
Detectable And Identifiable Type:
DJI, Datoong, Etc. Mainstream Brand Drones And DIY Cross-country Planes
Quick Location:
Within 2S, Drone Information Can Be Quickly Analyzed.
Count The Number Of Drones Being Positioned Simultaneously:
≥10 Flights
Detection Range:
3km
Working Temperature:
-25℃~55℃
Weight:
200g
Size:
65*51*10.8mm(with A Case)
Highlight:

3KM Detection Range Drone Detection Module

,

2S Quick Position Drone Detection Module

,

5M Position Accuracy Drone Detection Module

Product Description
Drone Detection and Location Module
Overview

The drone detection and positioning module combines signal feature recognition with protocol analysis to provide precise location data for DJI drones and their operators. It also identifies spectral characteristics of drones from other manufacturers.

Drone Detection and Location Module Quick Start Guide
Key Features
  • Compact business card-sized design
  • Detects DJI drones with <5M positioning accuracy and recognizes signals from other brands
  • Switchable operation modes: protocol decoding, feature recognition, or dual-mode
  • Formatted data output via TTL serial port with IPEX RF interface
  • Provides comprehensive drone data including model, serial number, coordinates, altitude, speed, and pilot information
  • 5V power supply with 4W power consumption
  • Supports remote firmware upgrades
Technical Specifications
Positioning Model DJI Mavic II, AIR2S, Mini3PRO, AVATA and other O2/O3 protocol drones
Detectable Types DJI, Datoong, and other mainstream brand drones plus DIY cross-country planes
Quick Location Analyzes drone information within 2 seconds
Simultaneous Tracking ≥10 drones simultaneously
Detection Range 3km
Working Temperature -25℃ to 55℃
Weight 200g
Dimensions 65×51×10.8mm (with case)
About Luowave

China's Leading Software Radio Equipment and Solutions Provider Since 2012. Our product portfolio includes:

  • USRP-LW modular SDR and RF daughterboards
  • SDR-LW integrated SDR
  • COUNTER-UAV Series Products
Compact Anti UAV Module with Multi-Drone Detection and DJI Protocol Support for Accurate UAV Tracking 0 Compact Anti UAV Module with Multi-Drone Detection and DJI Protocol Support for Accurate UAV Tracking 1
Contact Information

Please don't hesitate to contact us for more information.

Skype: 86-18062514745

Email: chen@luowave.com
