Created with Pixso. 2km Range Drone Detection Module with 1.1-5.8GHz Frequency Band

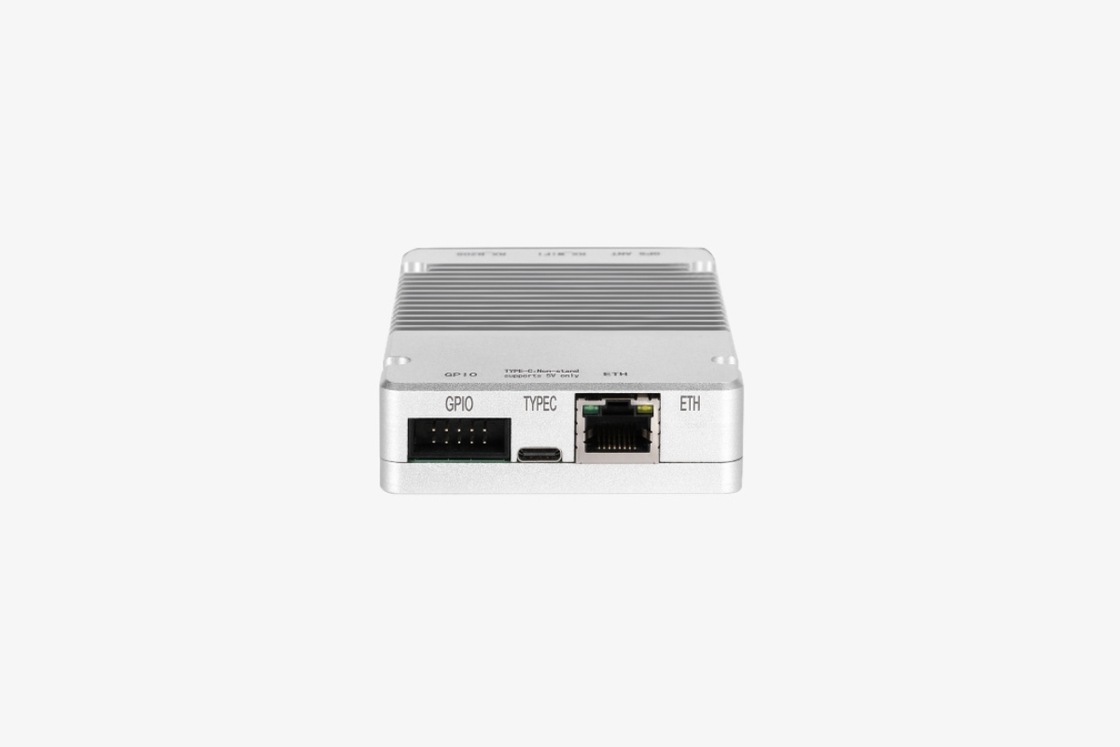

2km Range Drone Detection Module with 1.1-5.8GHz Frequency Band
  • Name

2km Range Drone Detection Module with 1.1-5.8GHz Frequency Band

Brand Name: Tabebuia
Model Number: Drone Detection Module
Detail Information
Product Description
Detail Information
Place of Origin:
China
Detection Frequency Band:
1.1GHz~1.4GHz、2.4GHz、5.2GHz、5.8GHz
Detect The Number Of Drones:
≥10 Flights
Detection Range:
2km
Working Temperature:
-25℃~55℃
Weight:
200g
Size:
65*51*10.8mm(with A Case)
Highlight:

1S Rapid Detection Module

,

10 Drones Simultaneously Detecting Module

,

2kM Detection Range Module

Product Description
Drone Detection Module
Overview

The drone detection and positioning module integrates two primary detection capabilities: signal feature recognition and protocol analysis. This enables the provision of precise location information for DJI drones and their operators. Additionally, it can identify spectral characteristics of drones from other manufacturers.

Features
  • Support for mainstream brands such as DJI and Dronex, as well as DIY drones for detective identification
  • Compact as a business card
  • Detect mainstream drones and off-road vehicles
  • Offer long-range and fast detection
  • Output formatted data via TTL serial port with IPEX RF interface
  • Support easy development through the serial port
  • Supports remote upgrade
  • 5V power supply, 3.5W power consumption
Specifications
Detection model Recognize mainstream brands of drones such as DJI and Datootong, as well as DIY cross-country drones
Detection frequency band 1.1GHz~1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz
Rapid detection The drone model and working frequency can be quickly identified within 1S
Detect the number of drones at the same time ≥10 flights
Detection range 2km
Working temperature -25℃~55℃
Weight 200g
Size 65*51*10.8mm (with a case)
