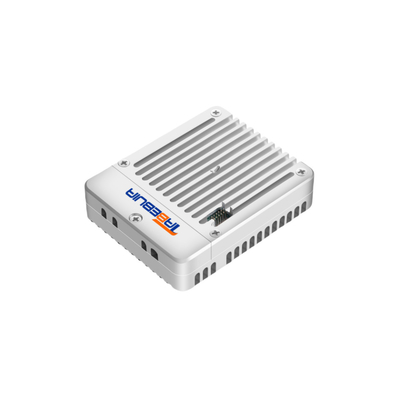

Drone Detection and Location Module 5M Position Accuracy 2S Quick Position 3KM Detection Range

Name: Drone Detection and Location Module 5M Position Accuracy 2S Quick Position 3KM Detection Range
Brand: Wuhan Tabebuia Technology Co., Ltd.
SKU: Drone Detection and Location Module
Price: 116.00 USD
Availability: InStock

Brand Name:	Tabebuia
Model Number:	Drone Detection and Location Module
Price:	$4,229.00

Detail Information

Product Description

Detail Information

Place of Origin:

China

Positioning Model:

DJI Mavic II, AIR2S, Mini3PRO, AVATA And Other O2/O3 Protocol Drones

Detectable And Identifiable Type:

DJI, Datoong, Etc. Mainstream Brand Drones And DIY Cross-country Planes

Quick Location:

Within 2S, Drone Information Can Be Quickly Analyzed.

Count The Number Of Drones Being Positioned Simultaneously:

≥10 Flights

Detection Range:

3km

Working Temperature:

-25℃~55℃

Weight:

200g

Size:

65*51*10.8mm(with A Case)

Highlight:

3KM Detection Range Drone Detection Module

2S Quick Position Drone Detection Module

5M Position Accuracy Drone Detection Module

Product Description

Overview

The drone detection and positioning module integrates two primary detection capabilities: signal feature recognition and protocol analysis. This enables the provision of precise location information for DJI drones and their operators. Additionally, it can identify spectral characteristics of drones from other manufacturers.

Features

Compact as a business card;
Support DJI drone detection and positioning with less than 5M accuracy, plus signal feature recognition for other brands;
Offer switchable modes (protocol decoding, feature recognition, or dual-mode operation;

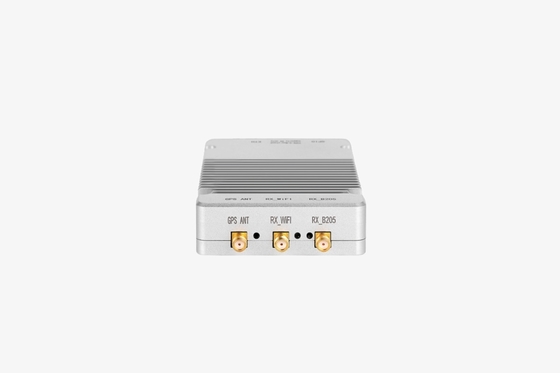

Output formatted data via TTL serial port with IPEX RF interface;
Provide detailed information including drone model, serial number, latitude/longitude, altitude, airspeed, and pilot info;
5V power supply, 4W power consumption;
Support remote upgrades.

Specifications

Positioning model	DJI Mavic II, AIR2S, Mini3PRO, AVATA and other O2/O3 protocol drones
Detectable and Identifiable Type	DJI, Datoong, etc. mainstream brand drones and DIY cross-country planes
Quick location	Within 2S, drone information can be quickly analyzed.
Count the number of drones being positioned simultaneously	≥10 flights
Detection range	3km	Working temperature	-25℃~55℃
Weight	200g	Size	655110.8mm(with a case)

Who are we

China Leading Software Radio Equipment and Solutions Provider Since 2012, Hot-selling products includes:

USRP-LW modular SDR, RF daughterboards
SDR-LW integrated SDR
COUNTER-UAV Series Products

Drone Detection and Location Module 5M Position Accuracy 2S Quick Position 3KM Detection Range 0

Why us

Drone Detection and Location Module 5M Position Accuracy 2S Quick Position 3KM Detection Range 1

Please do not hesitate to contact me if you need any further information.

Skype: 86--18062514745

E-mail: chen@luowave.com
