VERT2450 Antenna RF 2.4-2.48 And 4.9-5.9 GHz Dualband 3dBi Gain Vertical Omni-directional Antenna

Name: VERT2450 Antenna RF 2.4-2.48 And 4.9-5.9 GHz Dualband 3dBi Gain Vertical Omni-directional Antenna
Brand: Wuhan Tabebuia Technology Co., Ltd.
SKU: VERT2450
Price: 150.00 USD
Availability: InStock

Brand Name:	tabebuia
Model Number:	VERT2450
MOQ:	1
Price:	$150.00

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

Vertical Omni-directional Antenna

P/N:

VERT2450

Frequency Range:

RF 2.4-2.48 And 4.9-5.9 GHz Dualband

Gain:

3dBi Gain

Highlight:

3dBi Gain Antenna

5.9 GHz Dualband Antenna

Vertical Omni-directional Antenna

Product Description

Overview

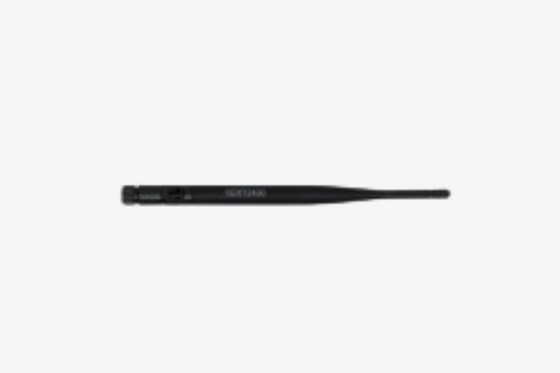

VERT2450 is a dual-band vertical omnidirectional antenna covering the frequency range of 2.4 to 2.48 GHz and 4.9 to 5.9 GHz, with a gain of 3 dBi.

VERT2450 Antenna RF 2.4-2.48 And 4.9-5.9 GHz Dualband 3dBi Gain Vertical Omni-directional Antenna 0

Compatible Products

P/N	USRP-LW X310	USRP-LW N321	USRP-LW N310	USRP-LW N210	USRP-LW E310	USRP-LW B210	USRP-LW B205 (Module)	USRP-LW B205 (Board)
Frequency Range	DC-6GHz	3MHz-6GHz	10MHz-6GHz	DC-6GHz	70MHz-6GHz
RF Daughterboard	Support two Daughterboards	Built-in two Daughterboards (non-replaceable)	Built-in two Daughterboards (non-replaceable)	Support one Daughterboards	Unsupported
Max. Bandwidth	160MHz each	200MHz each	100MHz each	8-bit width:80MHz each 16-bit width:25MHz each	56MHz each
Channels NO.	2T2R	2T2R	4T4R	1T1R	2T2R	2T2R	1T1R	1T1R
ADC/DAC	ADCs: ADS62P48 14-bit, configurable sampling rate: 184.32, 200 MS/s DACs: AD9146 16-bit, maximum sampling rate of 800 MS/s	ADCs:AD9695B 14-bit, configurable sampling rates: 200, 245.76 and 250 MS/s DACs:DAC37J82 16-bit, configurable sampling rate: 200, 245.76 and 250 MS/s	AD9371 ADCs: 16-bit, configurable sampling rates: 122.88, 125, and 153.6 MS/s DACs: 14-bit, configurable sampling rates: 122.88, 125, and 153.6 MS/s	ADCs:ADS62P42 14-bit 100MS/s DACs:AD9777 16-bit 400MS/s	AD9361 ADCs:12-bit 61.44MS/s DACs:12-bit 61.44MS/s		AD9364 ADCs:12位61.44MS/s DACs:12位61.44MS/s
FPGA Model	Xilinx Kintex-7 XC7K410T	Xilinx Zynq-7100 SoC FPGA	Xilinx Zynq-7100 SoC FPGA	Xilinx Spartan XC3SD3400A	Xilinx Zynq 7020 SoC FPGA	Xilinx Spartan 6 XC6SLX150	Xilinx XC7AT200	Xilinx Artix 7
Data Interface	GigE Port, 10GbE Port, PCIE x4	GigE Port, 10GbE Port, QSFP(2*10G) ,A-USB, micro-US	GigE Port, 10GbE Port, A-USB,micro USB	Gigabit Ethernet Port	Ethernet Port, USB2.0	USB3.0
Size (mm)	29022545	38022045	42522045	22516562	1336826	17912748	1076520	104*57
Unit Price	USD 9999	USD 23999	USD 17999	USD 3699	USD 5999	USD 2199	USD 2199	USD 599
