High Accuracy Board Mounted GPSDO 4G LTE Base Station USRP For X310 X300

High Accuracy Board Mounted GPSDO 4G LTE Base Station USRP For X310 X300
High Accuracy Board Mounted GPSDO 4G LTE Base Station USRP For X310 X300

Large Image :  High Accuracy Board Mounted GPSDO 4G LTE Base Station USRP For X310 X300

Product Details:
Place of Origin: China
Brand Name: Luowave
Model Number: TCXO
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD
Packaging Details: Paper Box\Paper Carton
Delivery Time: Spot Goods or 30 Days
Payment Terms: T/T
Supply Ability: 1 Piece

High Accuracy Board Mounted GPSDO 4G LTE Base Station USRP For X310 X300

Description
High Light:

GPSDO 4G LTE USRP

,

Board Mounted GPSDO high accuracy

,

GPSDO 4G LTE USRP

Board Mounted GPSDO (OCXO) Recommended for USRP X300/X310

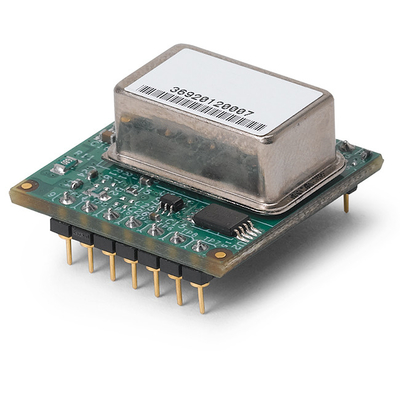

GPSDO for USRP X Series (PCB-Mounted GPS-Disciplined OCXO)

This is a GPS-disciplined, oven-controlled crystal oscillator (GPSDO), which is compatible with a USRP X300 or X310. The GPSDO provides a high-accuracy 10 MHz reference and 1 PPS signal. This allows developers to build system that serve applications with tight synchronization requirements, or global timing alignment within 50 ns.

Overview

This is a GPS-disciplined, oven-controlled crystal oscillator (GPSDO), which is compatible with a USRP X300 or X310. It can also be used with the USRP B200/B210, but the system will require external power. The GPSDO provides a high-accuracy 10 MHz reference and 1 PPS signal, which allow developers to build systems that serve applications with improved frequency accuracy and global timing alignment.

We recommend reading the GPSDO Selection Guide to ensure this is the right device for your application.

Module Specifications
1 PPS Accuracy ±50ns to UTC RMS (1-Sigma) GPS Locked
Holdover Stability <±20µs over 3 hour period at +25C
1 PPS Output (OCXO Flywheel Generated) 3.3VDC CMOS
RS-232 Control NMEA & SCPI-99 Control Commands, Integrated into UHD
GPS Frequency L1, C/A 1574MHz
GPS Antenna Active (5V compatible) or Passive
GPS Receiver 50 Channels, Mobile, WAAS, EGNOS, MSAS capable
Sensitivity Acquisition -142dBm, Tracking -168dBm
TTFF Cold Start: <45 sec, Warm Start: 1 sec, Hot Start: 1 sec
ADEV 1E-11 at 1s
Warm Up Time / Stabilization Time <5 min at +25C to 1E-08 Accuracy
Supply Voltage (Vdd) 3.3/5VDC
Power Consumption 0.7W Max
Operating Temperature 0C to +60C
Storage Temperature -45C to 85C
Oscillator Specifications
Frequency Output 10MHz
10MHz Retrace ±2E-08 after 1 hour at 25C
Frequency Stability Over Temperature (Unlock Condition) ±2.5E-08
Warm Up Time < 1 min at +25C
Phase Noise at 10MHz 1Hz -75dBc/Hz
10Hz -110dBc/Hz
100Hz -132dBc/Hz
1kHz -142dBc/Hz
10kHz <-145dBc/Hz
