Anti-UAV teaching and training system

Our Anti-UAV teaching and training system is based on the live simulation of anti UAV electronic countermeasure reconnaissance, navigation countermeasure and interference suppression, so that students can participate in and experience it in person. The whole system includes anti UAV electronic countermeasure experiment subsystem and anti UAV GPS/telecontrol jamming experiment subsystem, which can be used to carry out UAV perception and UAV system control right jamming suppression.

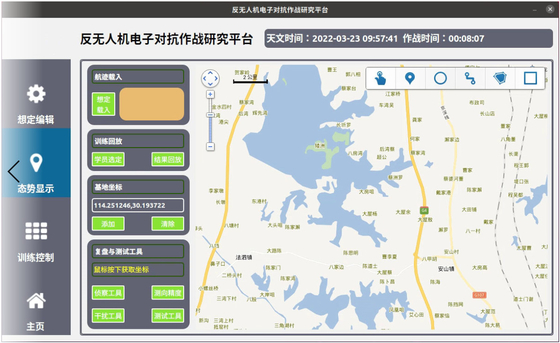

Anti-UAV Electronic Countermeasures Research Platform Interface — 1

Anti-UAV Electronic Countermeasures Research Platform Interface--2

Training score reporting system interface

The anti UAV EW reconnaissance experiment subsystem is mainly used to carry out UAV data transmission or image transmission and other telemetry link signal reconnaissance experiments to realize telemetry signal reconnaissance and analysis. The system uses a dual channel phase interferometer system to measure the direction of the target, providing target indication for the subsequent effective anti UAV operations. The subsystem is mainly composed of the electronic countermeasure reconnaissance equipment and UAV telemetry signal reconnaissance control software. Among them, the electronic countermeasure reconnaissance equipment is mainly responsible for reconnaissance and interception of UAV telemetry signals; UAV telemetry signal reconnaissance control software is mainly equipped through outsourcing or procurement, including telemetry signal analysis module, DF control module and other modules. It is mainly responsible for the analysis of UAV telemetry signals and direction finding. The software is mainly developed based on LabView and Matlab, and can be redeveloped.

The anti UAV GPS/telecontrol jamming experiment subsystem is mainly used to carry out suppression or deception jamming experiments on the UAV airborne GPS navigation system and flight telecontrol system, so as to achieve effective jamming on the UAV GPS/telecontrol navigation system, making it unable to obtain effective position information or obtain wrong position information or control information. The anti UAV GPS suppression jamming equipment mainly radiates high fidelity false GPS navigation signals or high-power suppression jamming signals to the target UAV, thus forming a trap for the target UAV GPS navigation system and remote control system, thereby affecting the flight control of the UAV and making it deviate from the scheduled flight route.

The functions of this system are:

• Detection, recognition and perception of remote control and image transmission signals;
• UAV direction finding;
• GPS signal interference;
• UAV data link interference;
• Real time map display.
