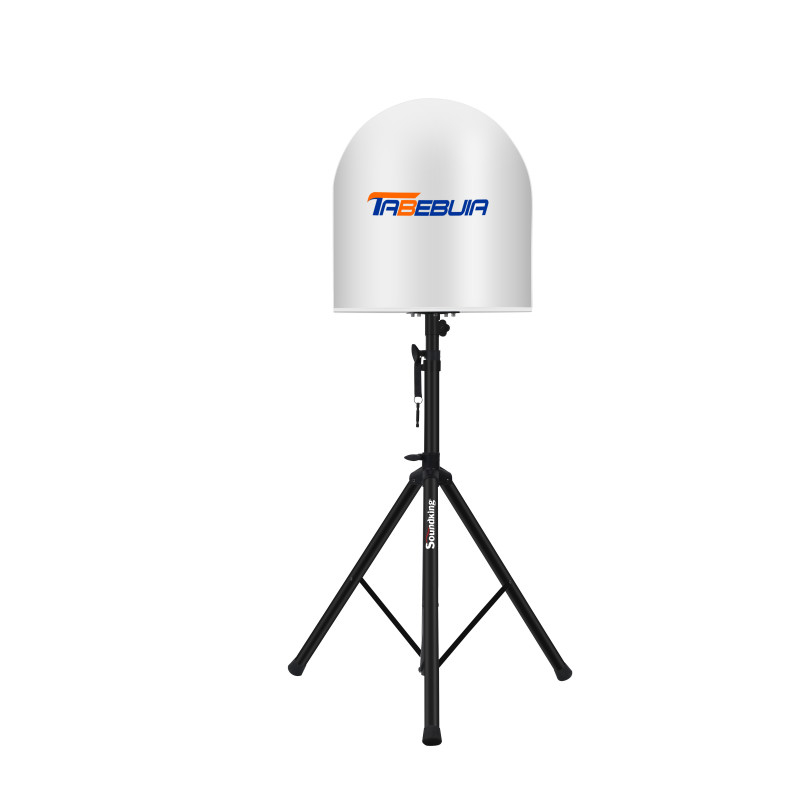

Anti UAV-TB-I multi-functional and configurable anti-drone system adopts amplitude ratio direction finding technology, which can provide electronic fence function based on GPS location information deception. It has a wide-band signal monitoring function,frequency range from 70MHz to 6GHz (the factory default is ISM2.4GHz&5.8GHz frequency band). After detected the UAV signal, it calculates the azimuth angle of the UAV, and directionally transmits the simulated no-fly zone navigation signal at the corresponding angle, to deceive and interfere with the navigation position information of the UAV, so that it cannot approach; the system can run unattended 24 hours. After startup, the drone is being identified, targeted, and regional rejection, and the alarm information can be uploaded to the control center through the network port or digital radio, among which navigation deception is an optional function.
The drone monitoring interface can visually display the location of the drone on the map, and upload and save early warning information. When the system is running under manual mode, the system will report early warning information including the drone type, intrusion time, and azimuth,the personnel on duty will carry out the next step. When the system is running under the automatic countermeasure mode ( need to be equipped with a navigation decoy function module ), the system will send a simulated navigation signal according to the direction of the drone to drive the drone away.
The basic model of Anti UAV-TB-I multi-function configurable anti UAV system includes the following functions and technical specification:
|serial number||model||Function Description|
|Single channel, 56M receiving bandwidth; including drone detection and identification functions|
|Option list: (options are based on standard machines)|
|1||B2-160||Dual channel (coherent) 160Mhz receive bandwidth;|
|2||B2-200||Dual channel (coherent) 200Mhz receive bandwidth;|
|3||B4-200||Four-channel (full coherence) 200Mhz receive bandwidth;|
|4||B8-200||Eight channels (full coherence) 200Mhz receiving bandwidth;|
|5||K1||Direction finding: It can estimate the orientation and signal strength of the drone, the direction finding accuracy: 5 degrees|
|6||K2||Navigation deception: dual-mode navigation signal simulation of GPS L1 and GLONASS L1, which can guide the drone to fly away, flying in circle or make a forced landing.|
Directional communication link interference:
Full frequency power suppression (single channel 30W) is applied to remote control and image transmission links. Directional antenna is used with turntable. Operating range: 2km;
Omnidirectional communication link interference:
All frequency band and omnidirectional power suppression (single channel 50W) is applied to remote control and image transmission links. Operating distance: 1.5km.
|9||K5||Analyze the frequency hopping patterns of unknown UAVs;|
|10||K6||Analyze UAV carrier modulation schemes: support the identification of ASK, FSK and PSK modulation Methods.|
|11||Cracking the drone control link radio protocol||Cooperative development is possible|
