Product Introduction:

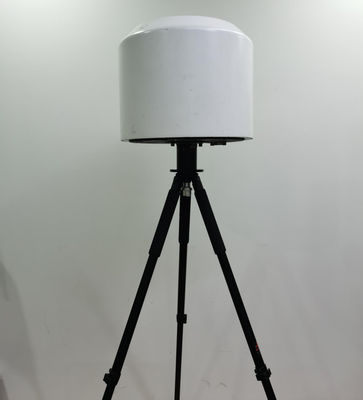

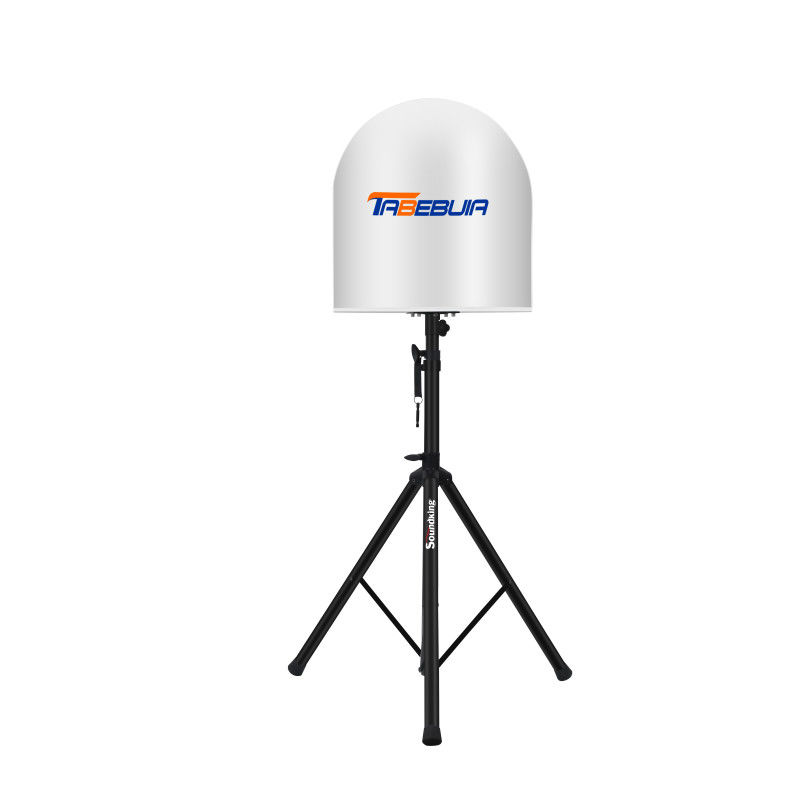

The UAV-TB-V UAV detection and countermeasure system is a product developed for large areas such as military bases, nuclear power plants, coastal defense, and large-scale event support. The product can realize the engineering deployment in fixed area places, and is composed of direction finding equipment and control terminal equipment. The equipment is designed in accordance with military product standards and can meet the use of various complex meteorological and climatic conditions.



  • Miniaturized design, small in size, light in weight, low in cost and convenient in distribution;
  • Systematic and intelligent design realizes the whole process control of radio signal detection;
  • Remote control and management of equipment can be realized through the network;
  • Radio signal detection capabilities in fixed and wide bands;
  • Equipped with high-gain antenna, long detection distance, identification target standard;
  • Simple operation, boot instantly, no professional skills required.



Automatically search and scan the preset frequency band, the device can make feature recognition judgment on the characteristic signal, find the direction of the specified signal, and display the direction finding result on the display and control terminal after the drone signal confirmed by feature recognition. After processing the signal features, it will automatically alarm the control terminal. The device can be multi-set of network direction finding and positioning, and the positioning results will be identified on the map, including 4G networking function, and can be connected to the control terminal through network port or 4G mobile communication.


Technical Indicators:

Type Anti UAV-TB-Ⅴ








Detection Parameters

Frequency 30MHz-6000MHz
Maximum detection distance ≥3km
Detection angle 360°
Minimum detection height 10m
Number of scan bands ≥10
Detection azimuth angle accuracy ≤ 3°(root mean square)
Multi-target detection capabilities ≥7
Detection mode Passive detection, passive signal acceptance
GPS function The system can locate the location of the device through GPS
Automatic norther function Automatic norther function
Unattended function With 24-hour unattended function
Sector-scan settings feature Can select any one or more directions in 0-8 directions for scanning sector setting
Black and white list function Equipped
Identify time ≤2S
Self-test function Self-test can be performed on the core module of the device
Historical data playback function The process of discovering the drone can be automatically recorded, and the scene can be reproduced in the historical data playback function
Allowable radiant intensity of electromagnetic waves ≤2V/m
Environmental adaptability -40℃~+70℃±2
Continuous working hours 24 h
Power AC220V±10%,50Hz±2.5Hz
Protection level IP65
Size 456mm*362mm
Weight ≤10kg








Emission frequency

Channel 1 :(1546~1626)MHz;

Channel 2:(2388~2496)MHz;

Channel 3:(5710~5884)MHz;


Emission power

Channel 1:36.52dBm;

Channel 2:43.84dBm;

Channel 3:43.82dBm;

Effective interception distance 3000 m
Interception response time ≤5S
Interference /communication distance ratio 10:1
Interception angle Horizontal plane 360°, vertical plane 0°~90°
Countermeasure function Dispersion and forced-landing interception;
Continuous working hours 24h
The allowable radiant intensity of electromagnetic waves <12V/m
Accompanying the sample DJI Mavic2 quadcopter UAV
