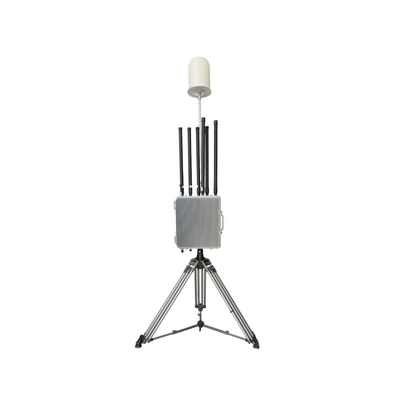

Drone Detection Countermeasures Decoy Equipment 800m Navigation Spoofing Range 5km Detection Range 5˚(RMS) Direction Finding Accuracy 1500~2000m(Omni) Power Suppression Range

Name: Drone Detection Countermeasures Decoy Equipment 800m Navigation Spoofing Range 5km Detection Range 5˚(RMS) Direction Finding Accuracy 1500~2000m(Omni) Power Suppression Range
Brand: Wuhan Tabebuia Technology Co., Ltd.
SKU: Anti Drone-TB-III
Price: 72.00 USD
Availability: InStock

Brand Name:	Tabebuia
Model Number:	Anti Drone-TB-III
Price:	$85,059.00

Detail Information

Product Description

Detail Information

Place of Origin:

China

Detection Frequency Range:

900MHz、1.2GHz、1.4GHz、2.4GHz、5.2GHz、5.8GHz

Detection Angle:

360˚

Navigation Spoofing Range:

800m

Detection Range:

5km

Navigation Spoofing Method:

No-fly Zone Simulation, Directed Dispersal

Directional Accuracy:

5˚（RMS）

Power Suppression Range:

1500~2000m(Omni-directional)

Weight:

20kg

Size:

512*462*232mm

Highlight:

2000m Power Suppression Range Drone Detection

800m Navigation Spoofing Range Drone Detection

5km Detection Range Drone Detection

Product Description

Overview

The device integrates detection, power suppression, and navigation deception capabilities, allowing users to switch modes based on specific requirements. Power suppression involves emitting high-power electromagnetic signals to disrupt or block the drone's communication links and navigation systems, thereby forcing the drone into pre-defined safe modes such as hovering, returning home, or landing, or causing it to lose power and descend. Navigation deception employs multi-mode navigation signal simulation to guide drones along specified trajectories, either for forced landing or directional repulsion.

Features

Real-time detection of drone telemetry signals;
Identify mainstream drones and locates DJI drones and pilots;
Long-range detection with comprehensive countermeasures for mainstream telemetry and FPV models;
Integrated four-mode navigation deception module covering mainstream frequencies;
Automatically counteract drones by specifying flight paths, driving away at any angle, and projecting no-fly zones;
Fully automatic drone guard operation.

Specifications

Detection frequency range	900MHz,1.2GHz,1.4GHz,2.4GHz,5.2GHz,5.8GHz
Detection angle	360˚	Navigation spoofing range	800m
Detection Range	5km	Navigation spoofing method	No-fly zone simulation, directed dispersal
Directional accuracy	5˚(RMS)	Power suppression range	1500~2000m(Omni-directional)
Countermeasure frequency band	900MHz,1.2GHz,2.4GHz,5.2GHz,5.8GHz(Customizable frequency band)
Analog navigation mode	GPS,Glonass,BDS,GAL	Protection rating	IP67
Weight	20kg	Size	512462232mm

Who are we

China Leading Software Radio Equipment and Solutions Provider Since 2012, Hot-selling products includes:

USRP-LW modular SDR, RF daughterboards
SDR-LW integrated SDR
COUNTER-UAV Series Products

Drone Detection Countermeasures Decoy Equipment 800m Navigation Spoofing Range 5km Detection Range 5˚(RMS) Direction Finding Accuracy 1500~2000m(Omni) Power Suppression Range 0

Why us

Drone Detection Countermeasures Decoy Equipment 800m Navigation Spoofing Range 5km Detection Range 5˚(RMS) Direction Finding Accuracy 1500~2000m(Omni) Power Suppression Range 1

Please do not hesitate to contact me if you need any further information.

Skype: 86--18062514745

E-mail: chen@luowave.com
